General Filters 5144

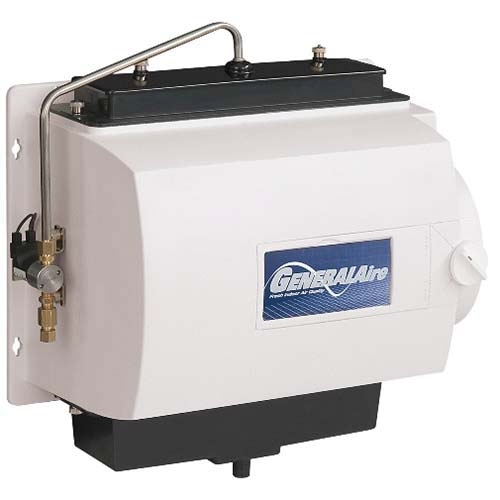

GeneralAire 1042LH Residential Whole-House Flow Through Humidifier, 17 gpd, 24 V

  • Manufacturers: General Filters
  • Brand Name: General Filters
  • PN: GF1042LH
  • MPN: 5144
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      17 gpd
Coverage Area      :      2800 sq-ft
Dimension      :      15-1/8 in W x 14 in H x 9 in D
Includes      :      Humidifier, Humidistat, Installation Instructions, Vapor Pad, Parts Kit, Drain Hose, Transformer, Metal Distributor Tube, Damper, 15-5/8 in Drain Hose, Drain Pan, Solenoid Valve
Item Name      :      Humidifier
Model      :      1042LH
Plenum Opening Size      :      13-5/8 in W x 9-1/2 in H
Series      :      Legacy
Sub Brand      :      GeneralAire
Type      :      Residential, Whole-House, Flow-Through
Voltage Rating      :      24 V

Installing a GeneralAire whole house humidifier can reduce allergy and asthma symptoms, minimize risk of infection, protect valuables (such as furniture, woodwork andmusical instruments) and save you money.

  • Remove screws, lift-off water distribution tube and trough to replace vapor pad
  • Delivers water to the water distribution trough
  • Quiet-operation
  • Distributes water evenly through-out vapor pad for maximum evaporation
  • Bypass duct: can be mounted to the left or right
  • Made with an ultra-violet stable automotive-grade plastic cover for long-lasting durability
  • Damper control knob: open during use
  • Water intake tube: brings water into the unit
  • Water drain tube: water is automatically drains from your humidifier
  • Inspection window: simply remove the GeneralAire badge
  • Sturdy drain pan
  • 5-years warranty
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS8213_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS8213_Spec.pdf
