Trerice 865T
Send Print
  1. pin-int

Trerice 865T

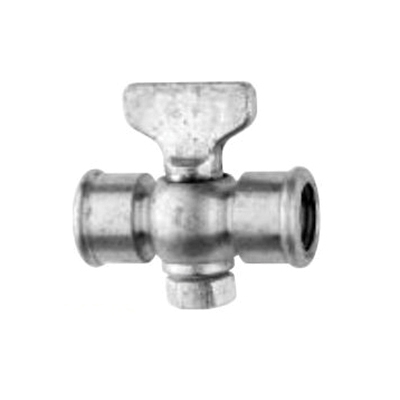

865 Brass 1/4-Turn Gauge Cock, 1/4 in, FNPT

  • Manufacturers: H O Trerice
  • Brand Name: Trerice
  • PN: 865T.14
  • MPN: 865T
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      FNPT
Dimension      :      1.62 in L x 1.73 in H
Item Name      :      Gauge Cock
Material      :      Brass
Operator Type      :      Tee Handle
Pressure Rating      :      200 psig
Series      :      865
Temperature Rating      :      500 deg F
Type      :      1/4-Turn

865 series 1/4-turn gauge cocks provide an economical way to shut-off the flow of air to the pressure instrument, thereby allowing the instrument to be isolated from the pressure media or removed from service. Trerice gauge cocks are constructed from brass and are intended for use on air lines where leakage is not of concern. It is recommended to place a needle valve, ball valve or gauge cock in line before every pressure gauge installation.

  • Brass plug

Applications: For air lines where leakage is not of concern

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10787_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10787_Spec.pdf
