Jomar Valve 900-03DSPB

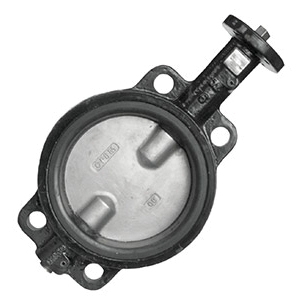

900 Ductile Iron Bare Stem Butterfly Valve, 3 in, Wafer

  • Manufacturers: Jomar Valve
  • Brand Name: Jomar Valve
  • PN: 900-03DSPL
  • MPN: 900-03DSPB
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3 in
Connection Type      :      Wafer
Disc Material      :      Stainless Steel
Item Name      :      Butterfly Valve
Material      :      Ductile Iron
Pressure Rating      :      200 psi
Seat Material      :      PTFE
Series      :      900
Temperature Rating      :      -20 to 250 deg F
Type      :      Bare Stem
  • Designed for commercial and industrial applications up to 200 psi
  • Easily accepts actuator with ISO 5211 mounting flange
  • Seat to flange seal eliminates the need for flange gaskets
  • Ideal for mounting pneumatic/electrical actuators
  • Square stem for direct mount
  • Wetted surfaces contain less than 0.25% lead content

Standards/Certifications: API 609, MSS SP-67, NSF 61, 372 certified, ISO 5211 standard

Applications: For commercial and industrial applications
