Bell & Gossett 110191LF
Send Print
  1. pin-int

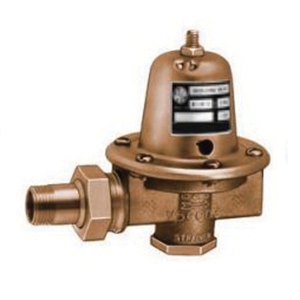

Bell & Gossett 110191LF

B-38TU Brass Pressure Reducing Valve, 1/2 in, Union NPT x Sweat

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • PN: BG110191LF
  • MPN: 110191LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      Union NPT x Sweat
Dimension      :      4-31/32 in L x 4-7/8 in H
Flow Rate      :      5-1/2 - 6 gpm at 125 psig
Item Name      :      Pressure Reducing Valve
Material      :      Brass
Model      :      B-38TU
Pressure Rating      :      10 - 25 psig adjustable, 12 psig factory Setting
Seat Material      :      Brass
Stem Material      :      Brass
Temperature Rating      :      225 deg F

Reducing valves fill the system to a preset pressure for optimum performance. Combination dual unit valves include pressure reducing valve and relief valve.

  • Lead-free
  • Fast fill feature reduces start-up time and labor
  • Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
  • Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
  • Flexible system connection
  • Brass body construction is highly resistant to corrosion
  • 125 psig working pressure

Standards/Certifications: ANSI/NSF 372, CSA certified

Applications: For potable water systems

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12621_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12621_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12621_Spec.pdf
