Bell & Gossett 113210
Send Print
  1. pin-int

Bell & Gossett 113210

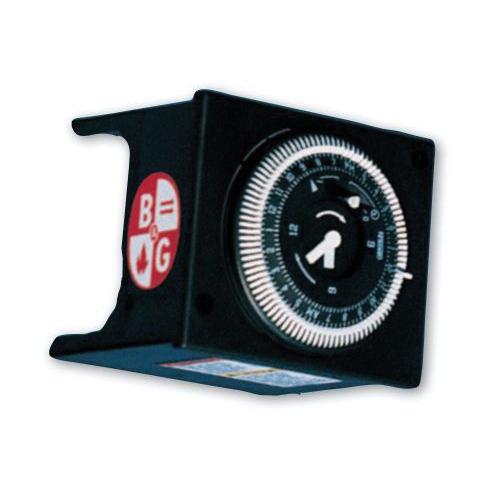

TC-1 Noryl Plastic Automatic Timer Kit, 115 - 120 VAC

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • PN: BG113210
  • MPN: 113210
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      16 A
Dimension      :      2-5/8 in L x 2-5/8 in W x 3-1/4 in H
Frequency Rating      :      60 Hz
Item Name      :      Automatic Timer Kit
Material      :      Noryl Plastic
Minimum Switch Interval      :      15 min
Model      :      TC-1
Voltage Rating      :      115 - 120 VAC

To increase the overall efficiency of a hot water recirculation system, the TC-1 timer control kit can be installed for use on any B&G NBF circulator. The TC-1 timer control is programmable to turn the circulator ON and OFF automatically at preset times. This permits the user to have the pump circulate hot water only during those times when high usage can be expected throughout the day.

Standards/Certifications: UL listed

Applications: For NBF circulators, residential or light commercials

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12628_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12628_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12628_Spec.pdf
