Zoeller Pumps 2057-0005

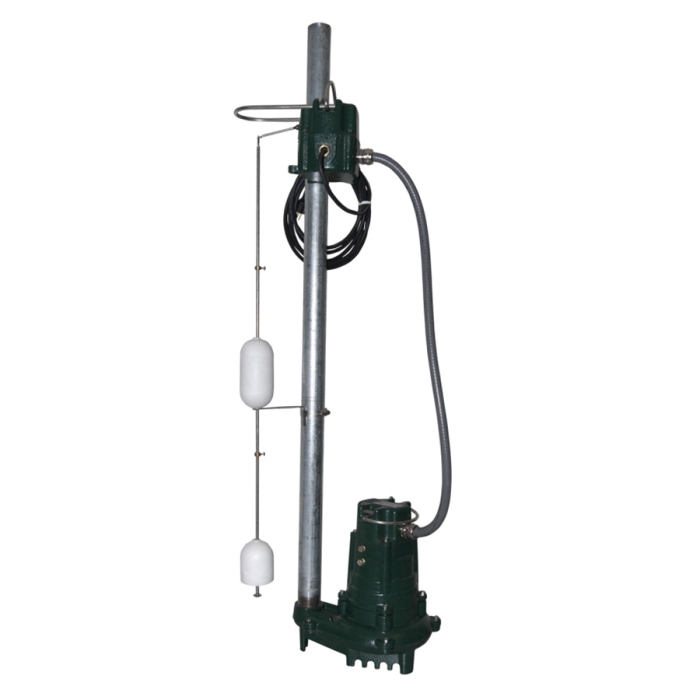

BN2057 Powder Coated Epoxy Cast Iron High-Temperature Automatic Submersible Dewatering Pump, 115 V, 1/3 hp, 1725 rpm, 39 gpm, 18 ft
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: BN2057
- MPN: 2057-0005
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 9.7 A |
| Connection Size | : | 1-1/2 in |
| Cord Length | : | 15 ft |
| Dimension | : | 10.62 in W x 10-1/16 in H |
| Finish | : | Powder Coated Epoxy |
| Flow Rate | : | 39 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Impeller Material | : | Cast Iron |
| Item Name | : | Submersible Dewatering Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 18 ft |
| Model | : | BN2057 |
| Phase | : | 1 ph |
| RPM | : | 1725 rpm |
| Series | : | 2000 |
| Temperature Rating | : | 200 deg F |
| Type | : | Automatic, High-Temperature |
| Voltage Rating | : | 115 V |
This series of submersible pumps is designed for use in residential or commercial dewatering applications and can be used to transfer groundwater and wastewater. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to meet specifications with assurance by using high temperature parts rated for continuous 200 deg F (93 deg C) contact. Available in a variety of models and performances, each pump is 100% factory tested to ensure quality and reliability for years of trouble-free performance. This attention to detail is an inherent feature of every model in this pump series, making it one of the most reliable in the industry.
- A high temperature, submersible pump series with electrical components meeting the National Electrical Code requirements for 200 deg F service
- Comprehensive line of models, styles and modes
- Conduit length is 3 ft for automatic models and 6 ft for non-automatic models
- Power cord length is 15 ft for automatic models and supplied by others for non-automatic models
- High temperature liquid-tight conduit used with high temperature cable
- High temperature motor windings
- High temperature Viton gaskets
- High temperature thermal overload protected
- All control components in contact with water are high temperature rated
- All models have stainless steel screws, guards, handles and control arm and seal assemblies
- Float operated mechanical switch box, which is mounted on the discharge pipe above the operating level (switch box is not intended to come in continuous contact with 200 deg F water)
- Mechanical seal has NI-resist rotary face and Viton elastomer
- Corrosion-resistant, powder coated epoxy finish
- 16-3 SOOW cord
- Oil-filled cooling
- Non-clogging vortex impeller type
- Stainless steel hardware
Applications: For commercial laundry facilities, maintenance facilities and boiler blow down applications
