Honeywell C7089U1006/U

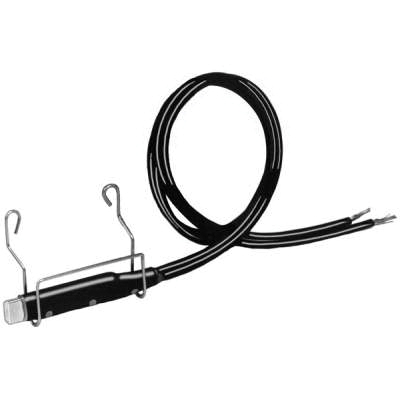

Outdoor Remote Sensor, 2-1/4 in L x 3/8 in W

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: C7089U1006
  • MPN: C7089U1006/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus 1.5 deg F at 70 deg F
Dimension      :      2-1/4 in L x 3/8 in W
Humidity Rating      :      5 - 95% Relative Humidity, Non-Condensing
Item Name      :      Remote Sensor
Temperature Rating      :      -40 to 120 deg F Ambient
Type      :      Outdoor

Remote outdoor temperature sensor, when installed, the current outdoor temperature is displayed. Also can be used to manage dual fuel and lock-out expensive auxiliary heat in heat pump applications.

  • Mounting clip allows easy sensor positioning on siding or soffit
  • Includes 60 in lead wires
  • Factory calibrated, no field calibration required
  • Maximum wire run of 200 ft
  • Mounting clip provided and screws provided

Applications: For TH8000 and TH7000 thermostats

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12989_Instal.pdf
