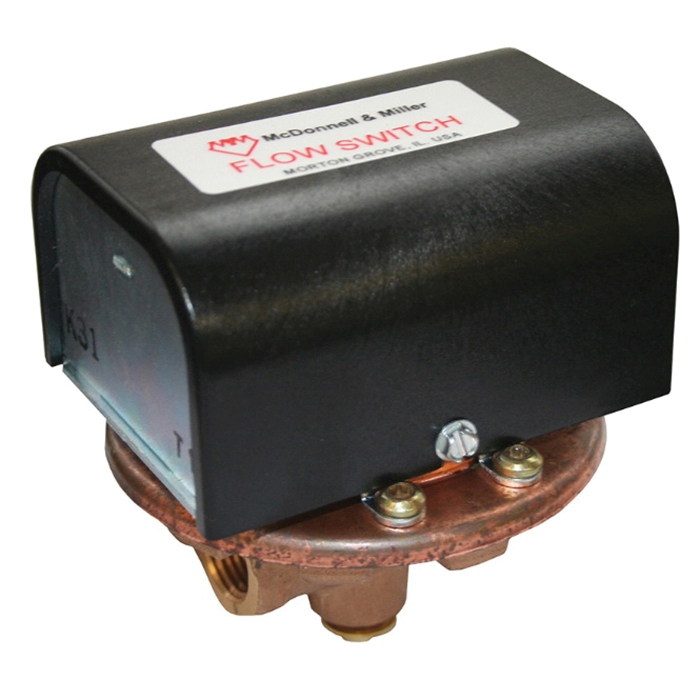

McDonnell & Miller 113200
FS1 High Sensitivity Liquid Flow Switch, 1/2 in NPT, 120/240 VAC, SPDT
- Manufacturers: Xylem
- Brand Name: McDonnell & Miller
- PN: MM113200
- MPN: 113200
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Action | : | Snap |
| Amperage Rating | : | 7.4 and 3.7 A |
| Connection Size | : | 1/2 in NPT |
| Contact Configuration | : | SPDT |
| Dimension | : | 4-11/16 in H x 5-1/2 in Dia |
| Enclosure | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Item Name | : | Liquid Flow Switch |
| Model | : | FS1 |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 32 - 225 deg F |
| Type | : | High Sensitivity |
| Voltage Rating | : | 120/240 VAC |
- In-line configuration eliminates need for a pipe tee
- High-flow capacity
- Switch compartment is completely sealed to protect it from the liquid
- Sensitivity adjusting screw makes flow adjustment easy
Standards/Certifications: UL listed, CSA certified
Applications: For general purpose applications where high sensitivity is required and moderate or low flow rates are encountered such as air conditioning, heating and hydronic systems, water, fuel oil, some viscous liquids and oils in process work
