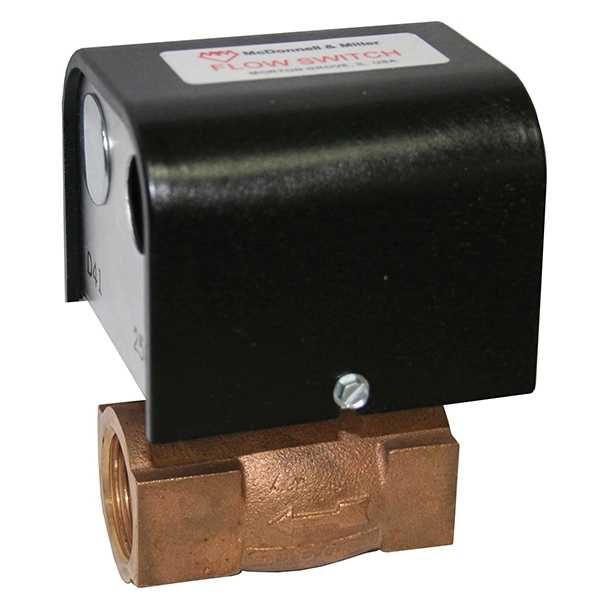

McDonnell & Miller 114760

FS5-3/4 General Purpose Brass Liquid Flow Switch, 3/4 in NPT, 120/240 VAC, SPDT

  • Manufacturers: Xylem
  • Brand Name: McDonnell & Miller
  • PN: MM114760
  • MPN: 114760
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Action      :      Snap
Amperage Rating      :      7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor
Connection Size      :      3/4 in NPT
Contact Configuration      :      SPDT
Dimension      :      3-3/16 in W x 5-1/16 in H x 1-11/16 in D
Enclosure      :      NEMA 1
Frequency Rating      :      50/60 Hz
Item Name      :      Liquid Flow Switch
Material      :      Brass
Model      :      FS5-3/4
Pressure Rating      :      150 psi
Temperature Rating      :      32 - 250 deg F
Type      :      General Purpose
Voltage Rating      :      120/240 VAC
  • In-line configuration eliminates need for a pipe tee
  • Sensitivity adjusting screw makes flow adjustment easy
  • 125 VA pilot-duty

Standards/Certifications: UL listed, CSA certified

Applications: For general purpose applications requiring low flow rate sensitivity
