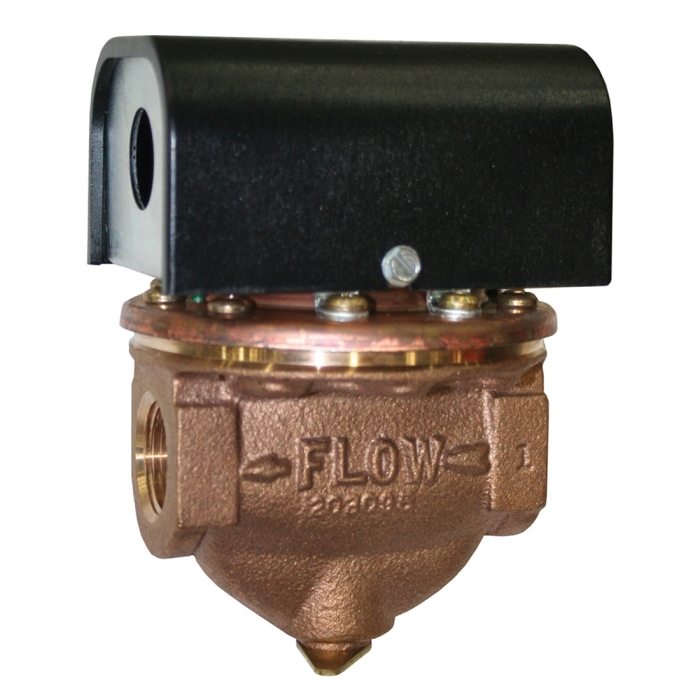

McDonnell & Miller 115600
FS6-1 High Sensitivity Liquid Flow Switch, 1 in NPT, 120/240 VAC, SPDT
- Manufacturers: Xylem
- Brand Name: McDonnell & Miller
- PN: MM115600
- MPN: 115600
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Action | : | Snap |
| Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor |
| Connection Size | : | 1 in NPT |
| Contact Configuration | : | SPDT |
| Dimension | : | 3-3/8 in W x 3-3/4 in D |
| Enclosure | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Item Name | : | Liquid Flow Switch |
| Model | : | FS6-1 |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 32 - 225 deg F |
| Type | : | High Sensitivity |
| Voltage Rating | : | 120/240 VAC |
- In-line configuration eliminates need for a pipe tee
- Very high-flow capacity
- Actuates at extremely low-flow rate
- Switch compartment is completely sealed to protect it from the liquid
- Sensitivity adjusting screw makes flow adjustment easy
- 125 VA pilot-duty
Standards/Certifications: UL listed, CSA certified
Applications: For heavy duty applications where high sensitivity is required, such as water treatment systems, cooling systems For electronic circuits, compressors, booster pumps, and bearings, and other applications that need instant switching
