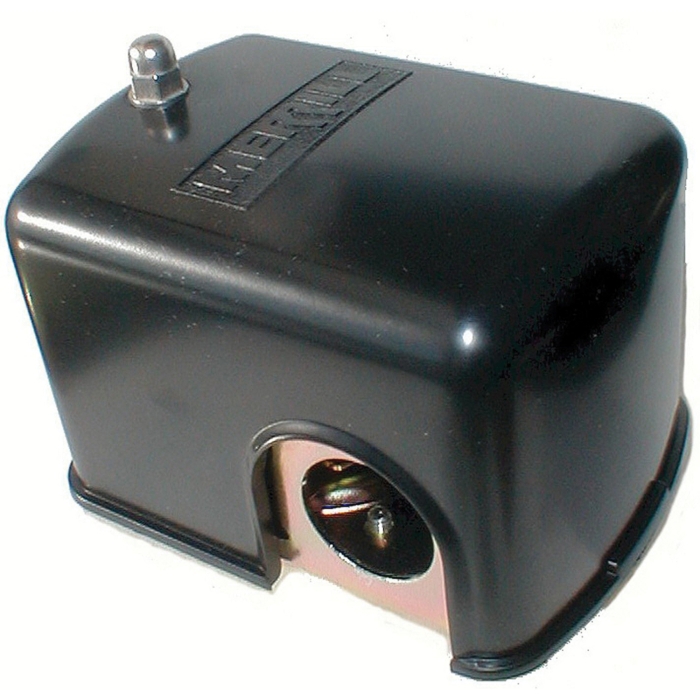

Merrill MPS2040

Pressure Switch, 20 - 40 psi

  • Manufacturers: Merrill Manufacturing
  • Brand Name: Merrill
  • PN: MPS2040
  • MPN: MPS2040
  • UPC: 642367090678
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      FNPT
HP Rating      :      1-1/2 hp
Item Name      :      Pressure Switch
Pressure Rating      :      20 - 40 psi
Voltage Rating      :      115/230 V
  • Lead-free
  • Individually boxed
  • Captive nut on cover
  • Adjustment instructions are inside top cover
  • Contact points open on cut-out pressure - switch-off
  • Points close on cut-in or pressure drop - switch on
  • 2 psi each turn of the adjustment screw

Standards/Certifications: cULus listed, CA certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20199_Cat.pdf
