Murdock MUV4752

M-V475 Cast Iron Ground Hydrant with Cast Iron Box and Vacuum Breaker, 3/4 in, 2 ft Bury

  • Manufacturers: Murdock
  • Brand Name: Murdock
  • PN: MUV4752
  • MPN: MUV4752
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bury Depth      :      2 ft
Connection Size      :      3/4 in
Item Name      :      Ground Hydrant with Cast Iron Box and Vacuum Breaker
Length      :      2 ft Bury
Material      :      Cast Iron
Model      :      M-V475

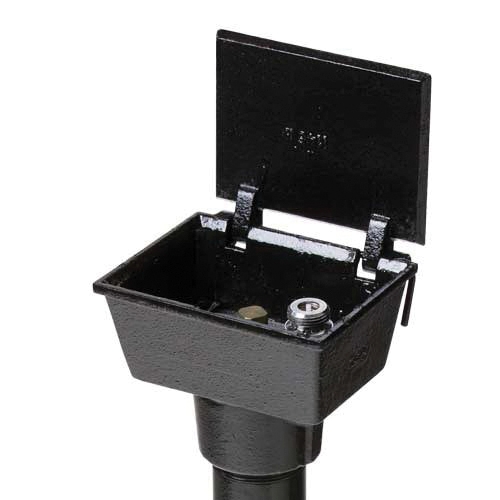

Model M-V475 box hydrant provides water access that is inconspicuous and unobtrusive. The top of the unit is installed flush with the surrounding surface, and all working parts are located below grade. The hydrant may be installed in pavement, sod or concrete. The unit is furnished with a hinged lid, which is opened for access to the hose outlet and closed when not in use. A loose key serves to operate the hydrant . To provide freeze-resistant functionality, the valve is located under ground at the specified depth of bury. The hydrant box and lid are iron castings, and the bottom connection, valve and hose outlet are solid-brass castings. Brass vacuum breaker is code-approved and non-removable. Field serviceable parts are easily accessible.

  • 2 ft bury depth
  • 3/4 in freeze-resistant
