Nibco NLFF30F

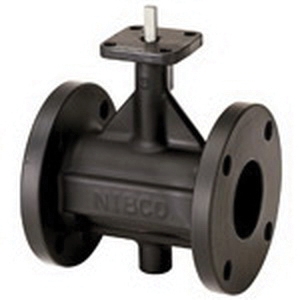

FC-2765 Cast Iron Butterfly Valve, 3 in, Flanged
- Manufacturers: NIBCO
- Brand Name: Nibco
- PN: FC2765-3.3
- MPN: NLFF30F
- UPC: 039923778604
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Connection Size | : | 3 in |
| Connection Type | : | Flanged |
| Dimension | : | 10.78 in H |
| Disc Material | : | Ductile Iron |
| Item Name | : | Butterfly Valve |
| Material Specifications | : | ASTM A126, Class B |
| Material | : | Cast Iron |
| Model | : | FC-2765 |
| Operator Type | : | Lever Handle |
| Pressure Rating | : | 200 psi |
| Stem Material | : | 416 Stainless Steel |
| Temperature Rating | : | 200 deg F |
The Nibco flanged end flat faced type butterfly valve provides bubble-tight shut-off at 200 psi. The valve is an excellent substitute for a gate valve installed in water (200 deg F or lower) applications, commercial and some light industrial process applications including HVAC, in addition to hot and cold potable water. The Nibco cast iron butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Nibco butterfly valves are backed by the Nibco 5-years 125% limited warranty.
- EPDM encapsulated ductile iron disc
- Stainless steel stem with metal bushings
- Not recommended for steam service
- Polyamide coated cast iron body
- Extended neck
- Cold form stem drive
- Elastomer encapsulated disc
- Class 125 flange ends
Standards/Certifications: ASME B16.10, MSS SP-67, NSF certified
Applications: For hot and cold potable water applications
