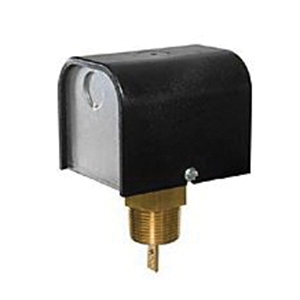

McDonnell & Miller 120611
FS-251 General Purpose Liquid Flow Switch, 1 in NPT, 120/240 VAC, SPDT
- Manufacturers: Xylem
- Brand Name: McDonnell & Miller
- PN: FS251
- MPN: 120611
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Action | : | Snap |
| Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor |
| Connection Size | : | 1 in NPT |
| Contact Configuration | : | SPDT |
| Dimension | : | 3-3/8 in W x 6-7/16 in H x 3 in D |
| Enclosure | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Item Name | : | Liquid Flow Switch |
| Model | : | FS-251 |
| Pressure Rating | : | 160 psi |
| Temperature Rating | : | 32 - 250 deg F |
| Type | : | General Purpose |
| Voltage Rating | : | 120/240 VAC |
General purpose, liquid flow switches, the series FS250, FS251 (NEMA1 version). These flow switches incorporate key changes to address customer expressed needs of greater reliability and lower flow sensing capabilities in a general purpose flow switch.
- Universal design serves the widest variety of applications
- 2-electrical knockouts allows connection from either end
- Sensitivity adjusting screw makes flow adjustment easy
- EPDM O-ring sealed
- Includes (4) 1, 2, 3 and 6 in stainless steel paddles
- 125 VA pilot-duty
Standards/Certifications: UL listed, CSA certified
Applications: For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others
