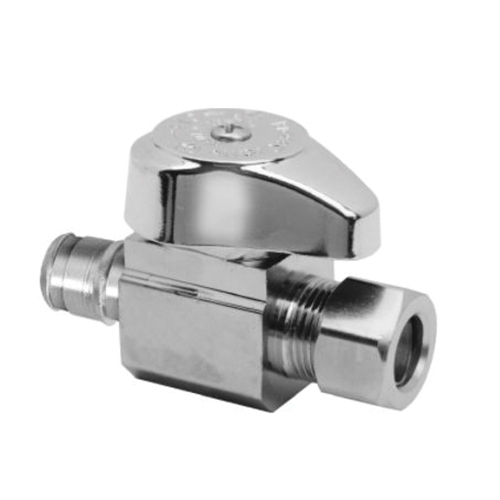

BrassCraft 1/2 in nominal cold expansion barb inlet x 3/8 in OD compression outlet 1/4-turn straight valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90 deg turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

• Lead-free
• Machined, 1-piece body construction for strength, durability and long-lasting performance
• Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F, for those applications, use our KT series ball stops
• 1-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
• Positive 1/4-turn shut-off
• Easy-to-remove handle protects against accidental operation during rough-ins
• 100% leak tested to ensure reliable, leak-free performance
• Santoprene stem barrel, glass-filled polypropylene stem shaft, rubber O-ring, zinc-plated steel handle screw, brass compression nut, compression sleeve
• Designed, machined and assembled in the USA
• Cold expansion barb for PEX

Standards/Certifications: ASME A112.18.1/CSA B125.1, ANSI/NSF 61 and 372 certified, IAPMO, UPC listed

Applications: For potable water distribution systems

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16335_Cat.pdf
• Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16335_Instal.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16335_Spec.pdf
