Reliable 1916173299

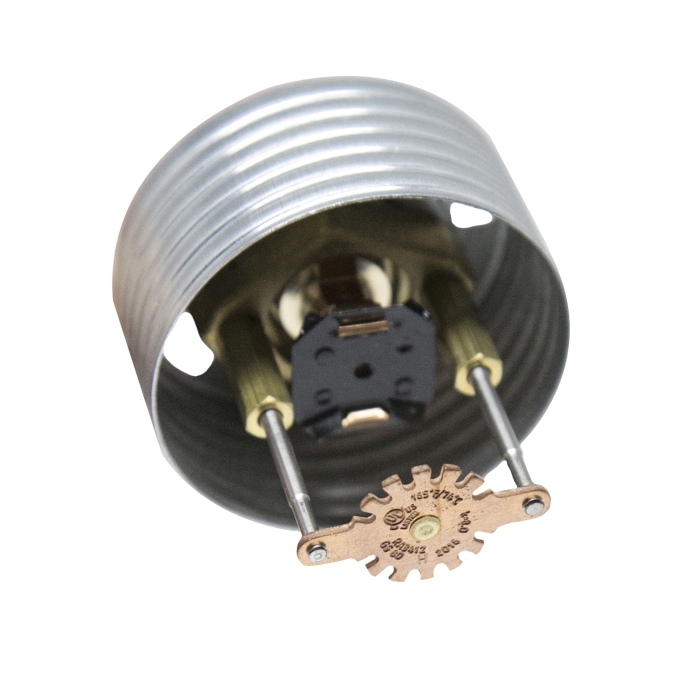

G5-56 Bronze Brass Alloy Quick Response/Standard Response Flat Concealed Pendent Sprinkler, 1/2 in NPT, 165 deg F, 5.6 K-Factor

  • Manufacturers: Reliable Automatic Sprinkler
  • Brand Name: Reliable
  • PN: G51B
  • MPN: 1916173299
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      3-5/16 in Dia
Finish      :      Bronze
Item Name      :      Flat Concealed Pendent Sprinkler
K-Factor      :      5.6
Material      :      Brass Alloy
Model      :      G5-56
Nominal Size      :      1/2 in
Orifice Size      :      1/2 in
Temperature Rating      :      165 deg F
Type      :      Quick Response/Standard Response

Model G5 series sprinklers are standard coverage, flat plate concealed sprinklers designed for installation in accordance with NFPA 13 and FM global property loss prevention data sheets. The sprinklers are offered with a standard model G5 cover plate (solid or perforated), a model G5 cover plate with a quick-response (QR) gasket, or a model G5 cover plate with a standard-response (SR) gasket. Model G5 sprinklers must only be used with the model G5 cover plate listed or approved with the sprinkler. All model G5 series sprinklers use a fusible-link operating element.

  • 3/4 in cover plate adjustment
  • Beryllium nickel fusible link
  • Bronze alloy levers
  • Bronze alloy yoke
  • Nickel with PTFE sealing washer
  • Bronze alloy load screw
  • Copper alloy towers
  • Stainless steel pins
  • Bronze alloy deflector
  • Steel cup
  • Model W3, FC wrench

Standards/Certifications: cULus, CE listed(light and ordinary Hazard only) FM, LPCB, VdS approved
