Zoeller Pumps 841-0008

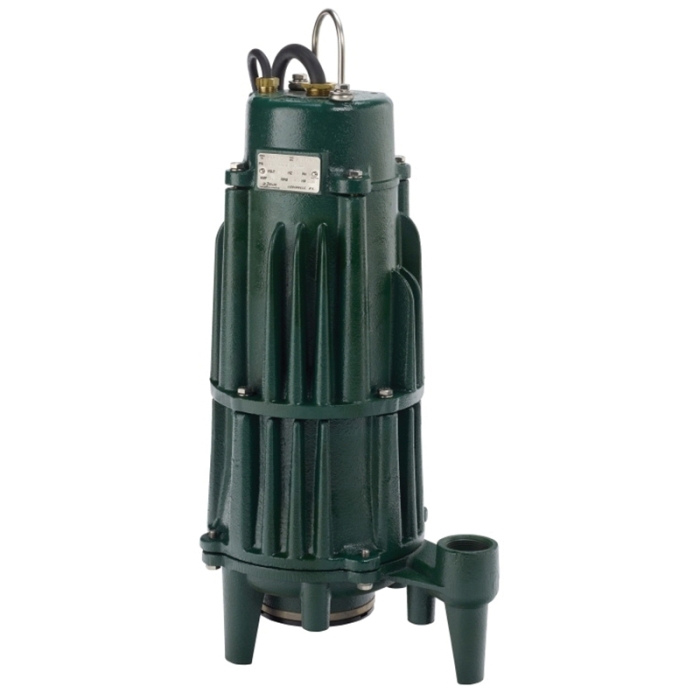

G841 Cast Iron 2-Seal Manual Grinder Pump, 460 V, 2 hp, 3450 rpm, 54 gpm, 125 ft
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: G841
- MPN: 841-0008
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 5.5 A |
| Bearing Type | : | Ball |
| Connection Size | : | 1-1/4 in NPT |
| Cord Length | : | 20 ft |
| Dimension | : | 13-3/16 in W x 22 in H |
| Flow Rate | : | 54 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Impeller Material | : | Ductile Iron |
| Item Name | : | Grinder Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 125 ft |
| Model | : | G841 |
| Phase | : | 3 ph |
| RPM | : | 3450 rpm |
| Series | : | Shark |
| Temperature Rating | : | 130 deg F |
| Type | : | 2-Seal, Manual |
| Voltage Rating | : | 460 V |
- Finned, class 30 cast iron construction
- Corrosion-resistant, powder coated epoxy finish
- Oil-filled, hermetically-sealed motor with class F windings
- Hardened stainless steel cutter and disc, rockwell C55-60
- Cutters protected from abrasive solids
- Bronze vortex impeller
- Upper and lower ball bearing construction
- Stainless steel screws, bolts and lifting bail
- Easily adapts to many existing competitors rail systems
- Dual mechanical seals with leak detection
- Automatic thermal overload protection (1 ph)
- Legs provide for free standing installation
- Pre-assembled systems available
- Class F insulation, capacitor start
- Thermal sensor motor protection
- Oil-filled cooling
- Non-clogging vortex impeller type
- Carbon/ceramic mechanical seals
- 304 stainless steel hardware
- 416 stainless steel motor shaft
Standards/Certifications: cCSAus C22.2 No. 108, SWPA member, UL 778 listed
Applications: For residential, commercial and municipal sewage grinder pump systems
