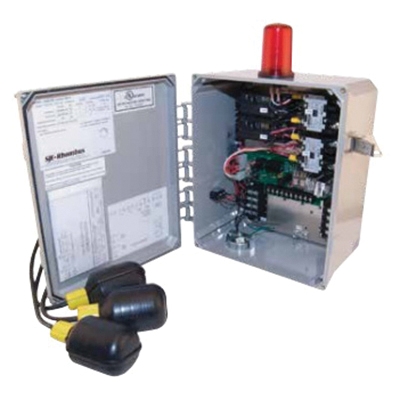

Zoeller Pumps 10-0125

1-ph Control Panel, 115, 208 - 230 V, 0 - 20 A, NEMA 4X

  • Manufacturers: Zoeller Pump Company
  • Brand Name: Zoeller Pumps
  • PN: 10-0125
  • MPN: 10-0125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0 - 20 A
Dimension      :      8 in W x 10 in H x 4 in D
Enclosure      :      NEMA 4X
Item Name      :      Control Panel
Phase      :      1 ph
Voltage Rating      :      115, 208 - 230 V

Electrical Control Panel is used on a simplex pump application where automatic electrical cycling of the pump is desired for added protection in residential or commercial applications. A control panel is required for all systems using a nonautomatic pump. The built-in alarm system, a standard feature, will activate when the water level becomes unusually high.

  • Dead front panel
  • Complete with (3) 20 ft control float switches
  • Clear inner door
  • Equipment disconnect
  • Motor contactor
  • NEMA 4X water-tight enclosure with lockable latch
  • Top mounted alarm light
  • Alarm horn provides audio warning of alarm condition (83 - 85 dB rating)
  • Pump run indicator light
  • Horn silence and alarm test toggle switches
  • HOA switches
  • Dry auxiliary contact
  • (3) 20 ft control floats switch included
  • 2-years warranty

Standards/Certifications: cULus listed

Applications: For simplex pump applications
