Reliable 1716114098

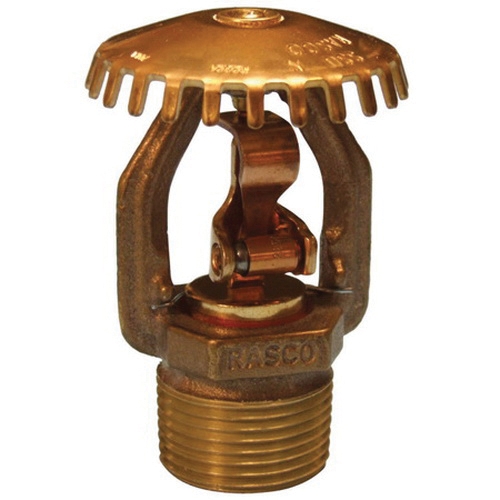

Bronze Upright Sprinkler, 3/4 in, 165 deg F, 11.2 K-Factor

  • Manufacturers: Reliable Automatic Sprinkler
  • Brand Name: Reliable
  • PN: GUX1LB
  • MPN: 1716114098
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Finish      :      Bronze
Item Name      :      Upright Sprinkler
K-Factor      :      11.2
Nominal Size      :      3/4 in
Pressure Rating      :      175 psi Maximum, 7 psi Minimum
Temperature Rating      :      165 deg F

The Reliable model GXLO sprinkler is a center strut, solder in compression, extra large orifice sprinkler that has been designed for storage and non-storage applications. The model GXLO sprinkler is available in either an upright or pendent configuration. The model GXLO sprinkler is available with either 3/4-in NPT or ISO 7-R3/4 threads. The model GXLO Upright is optionally available with either 1/2-in NPT or ISO 7-R1/2 threads for retrofit applications only.

Standards/Certifications: cULus listed, FM approved
