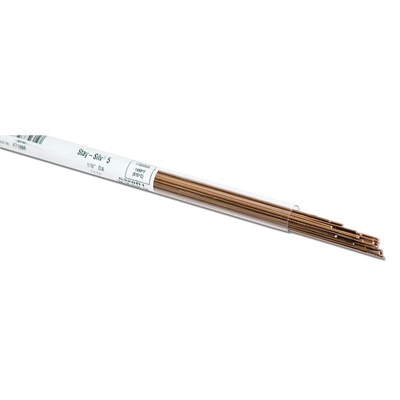

Harris 5620F1

Stay-Silv PhosCopper Medium-Silver Brazing Alloy, 1/8 in, 20 in L

  • Manufacturers: Harris Products
  • Brand Name: Harris
  • PN: HA41035
  • MPN: 5620F1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Composition      :      Phosphorus, Silver, Copper
Diameter      :      1/8 in
Item Name      :      Brazing Alloy
Length      :      20 in
Material      :      PhosCopper
Sub Brand      :      Stay-Silv
Temperature Rating      :      1350 - 1550 deg F
Type      :      Medium-Silver, PhosCopper
  • These medium-range alloys are well suited where close fit-up cannot be maintained
  • These filler metals are somewhat more ductile than Harris 0 or Stay-Silv

Standards/Certifications: ANSI/AWS A5.8 Class BCuP-3, ASME SFA 5.8 Class BCuP-3, QQ-B-650C Class BCuP-3

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16879_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16875_Spec.pdf
