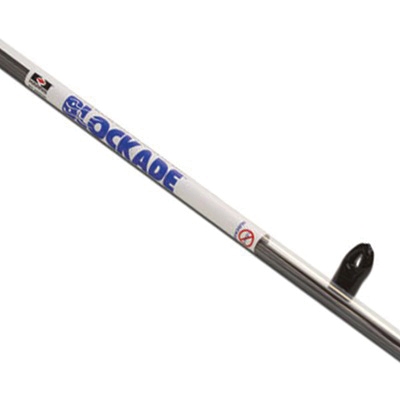

Harris BK220R1

Blockade Phosphorus Tin Silicon Brazing Alloy, 1/32 in

  • Manufacturers: Harris Products
  • Brand Name: Harris
  • PN: HA45535
  • MPN: BK220R1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Composition      :      Copper, Silver, Tin, Phosphorus
Diameter      :      1/32 in
Item Name      :      Brazing Alloy
Material      :      Phosphorus Tin Silicon
Sub Brand      :      Blockade
Temperature Rating      :      1200 - 1280 deg F

Blockade is a proprietary phosphorus-tin-silicon alloy engineered as an inexpensive alternative to copper-copper and copper-brass alloys. It is self-fluxing on copper and its lower melting temperature makes it an excellent choice for brass connections. Blockade flows rapidly but can be used to "cap" brazed joints.

  • (20) stick tube
  • Designed for low temperature joining of copper and brass

Standards/Certifications: ANSI/UL 1995, CAN/CSA C22.2 No. 236, AWS A5.8 BCuP-9, ASME Section IIC SFA 5.8 BCuP-9, RoHS compliant

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16879_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16876_Spec.pdf
