Bell & Gossett 405102
Send Print
  1. pin-int

Bell & Gossett 405102

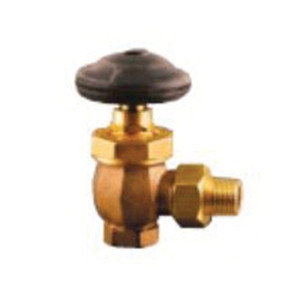

185C Brass Radiator Supply Angle Valve, 3/4 in, NPT

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • PN: HO405102
  • MPN: 405102
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      NPT
Dimension      :      4-1/4 in H
Item Name      :      Radiator Supply Angle Valve
Material      :      Brass
Model      :      185C
Pressure Rating      :      150 psig
Temperature Rating      :      400 deg F
  • Non-rising stem, packless construction
  • Modulating with dial and pointer
  • Opens and closes in less than 1-turn
  • Arrow on handle indicates "ON" and "OFF" direction
  • Dial divisions make adjusting valve easy

Applications: For hot water, cold water, 2-pipe steam and heating water systems

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17104_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17104_Spec.pdf
