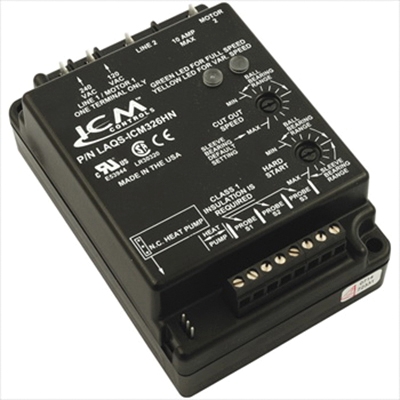

ICM Controls ICM326HN

Head Pressure Controller, 120/208/240 VAC Control

  • Manufacturers: ICM Controls Corporation
  • Brand Name: ICM Controls
  • PN: ICM326H
  • MPN: ICM326HN
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      100 mA - 10 A
Dimension      :      4-3/4 in L x 3-3/16 in W x 1-3/4 in H
Frequency Rating      :      50/60 Hz
Item Name      :      Head Pressure Controller
Temperature Rating      :      -40 to 176 deg F
Voltage Rating      :      120/208/240 VAC Control
  • Integral heat pump bypass circuitry allows electronic bypass of speed control
  • Built-in transformer eliminates cost, reduces installation time and simplifies wiring
  • Helps prevent evaporator freeze-ups, low pressure cut-outs and liquid slugged compressors in low ambient conditions
  • Hard start, low temperature cut-off, high temperature bypass
  • Ideal for line voltage air conditioning and refrigeration
  • 5 VA output

Standards/Certifications: RoHS compliant

Applications: For line voltage A/C and refrigeration systems

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17253_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17253_Spec.pdf
