Jackel SF441H

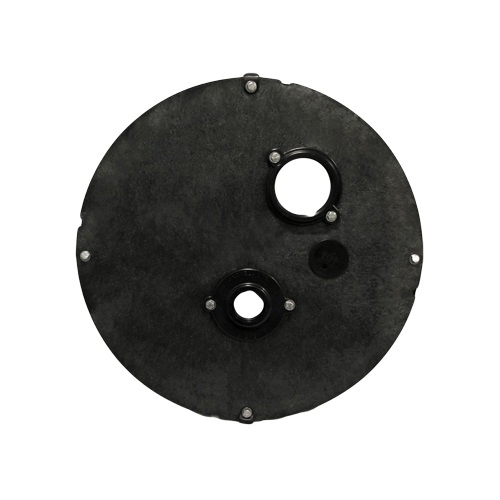

SF44 Polyethylene Structural Foam 1-Hole Cover, 1-1/2 in

  • Manufacturers: Jackel
  • Brand Name: Jackel
  • PN: SF441H
  • MPN: SF441H
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bolt Circle Diameter      :      19-1/2 in
Connection Type      :      Slip-Fit
Dimension      :      5/8 in THK x 20-1/2 in Dia
Item Name      :      1-Hole Cover
Material      :      Polyethylene Structural Foam
Model      :      SF44
Size      :      1-1/2 in

The SF44 sump basin cover is ideal for use with a submersible sump pump where a gas or radon tight sump basin seal is required. The corrosion-proof 1-piece cover is constructed of injection molded polyethylene structural foam and provides superior structural toughness and reliability. The SF44 is available with several different flange options making it uniquely customizable.

  • Heavy-duty construction
  • Gas, radon and odor tight
  • Acrylonitrile butadiene styrene (ABS) fittings
  • 301 stainless steel washers and bolts
  • Made in USA

Applications: For submersible sump pumps and SF20 and SF22A basins

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17376_Install.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17376_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17376_Tech.pdf
