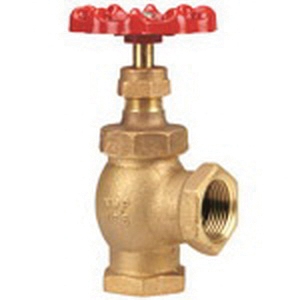

Nibco N546A1A

KT-67-UL Bronze Angle Valve, 1 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: KT67UL.1
  • MPN: N546A1A
  • UPC: 039923601698
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      FNPT
Dimension      :      6.3 in H Open
Disc Material      :      Nitrile Rubber
Item Name      :      Angle Valve
Material Specifications      :      ASTM B584, C83600, C84400
Material      :      Bronze
Model      :      KT-67-UL
Packaging Material      :      Impregnated Graphite
Pressure Class      :      Class 125
Pressure Rating      :      175 psi CWP Non-Shock
Stem Material      :      Bronze
  • Integral seat
  • Screw-over bonnet
  • Renewable seat disc
  • Dezincification-resistant
  • Aluminum handwheel
  • Stainless steel handwheel screw
  • Bronze packing nut
  • Graphite impregnated (non-asbestos) packing
  • Bronze bonnet
  • Nitrile rubber seat disc
  • Stainless steel seat screw
  • Sheet brass pack washer

Standards/Certifications: UL listed

Applications: For automatic fire sprinkler systems
