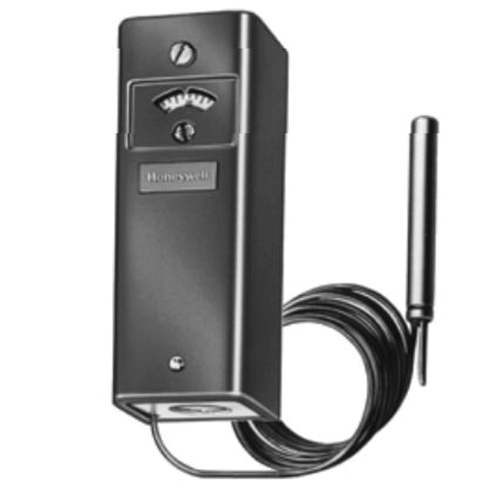

Honeywell L6008A1242/U

Single and Multi-Function Circulator Control and Low-Limit Aquastat Controller for Limiting or Regulating the Temperature of Liquids in Boilers

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: L6008A1242
  • MPN: L6008A1242/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      5.1 A at 240 VAC, 8 A at 120 VAC Full Load, 30.6 A at 240 VAC, 48 A at 120 VAC Locked Rotor, 0.25 A at 0.25 - 12 VDC Millivolt
Capillary Length      :      66 in
Dimension      :      2 in W x 5-5/8 in H x 2-1/8 in D
Item Name      :      Aquastat Controller
Mounting      :      Horizontal/Vertical
Switch Configuration      :      SPDT
Temperature Rating      :      100 - 200 deg F
Type      :      Single and Multi-Function, Circulator Control and Low-Limit
Voltage Rating      :      120/240 V
  • Remote temperature sensing element detects and responds rapidly to temperature changes
  • Totally enclosed micro switch snap-acting switch
  • Visible control point scale and external adjustment screw permit easy setting
  • Horizontal or vertical mounting of the remote element into boiler, tank or other container
  • Case mounts to a vertical surface
  • 3/8 x 2-7/8 in bulb

Standards/Certifications: CSA LR95329-1, UL MP466, Vol. 6, section 1, guide number MBPR2

Applications: For low limit and circulator control, limiting or regulating the temperature of liquids in boilers, storage tanks and other applications
