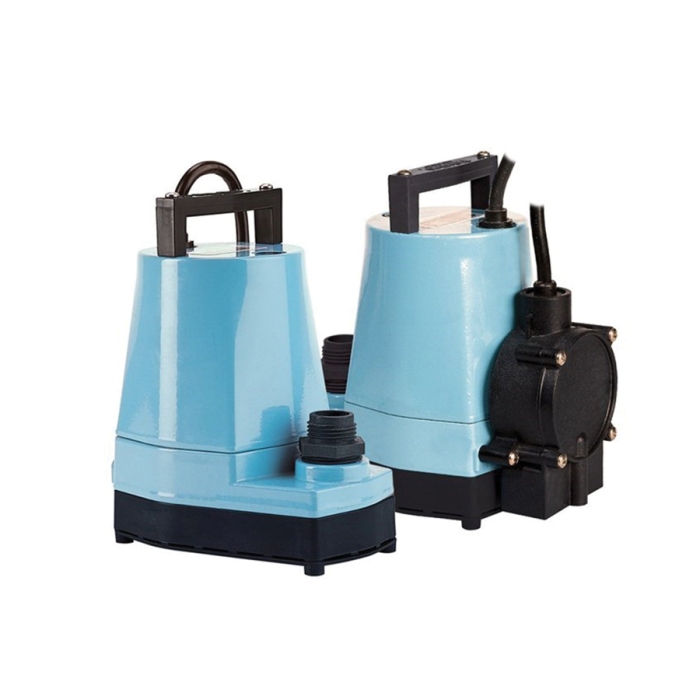

Little Giant 505350

5-ASP-LL Epoxy-Coated Cast Aluminum Submersible Utility Pump, 115 V, 1/6 hp, 1200 gph, 26.3 ft

  • Manufacturers: Franklin Electric
  • Brand Name: Little Giant
  • PN: LG505350
  • MPN: 505350
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      5 A
Bearing Type      :      Sleeve
Connection Size      :      1 in FNPT
Cord Length      :      18 ft
Dimension      :      7-3/4 in W x 7.78 in H x 4.13 in D
Finish      :      Epoxy Coated
Flow Rate      :      1200 gph
HP Rating      :      1/6 hp
Impeller Material      :      Nylon
Item Name      :      Submersible Utility Pump
Material      :      Cast Aluminum
Maximum Feet of Head      :      26.3 ft
Model      :      5-ASP-LL
Pressure Rating      :      11.4 psi
Series      :      5
Temperature Rating      :      120 deg F
Voltage Rating      :      115 V
Wattage      :      380 W
  • 1/6 hp shaded pole motor with overload protection
  • Designed for continuous-duty
  • Pumps down to 1/8 in
  • 1 in FNPT discharge (includes garden hose adapter)
  • Removable inlet screen for easy cleaning
  • Multiple switch options for automatic operation
  • Piggyback diaphragm switch included
  • Nylon volute
  • Stainless steel motor shaft, fasteners
  • SJTW power cord
  • Fluoroelastomer shaft seal
  • Semi-open impeller type

Standards/Certifications: cCSAus certified

Applications: For commercial, industrial, and home uses where water must be transferred or recirculated
