Little Giant 550521

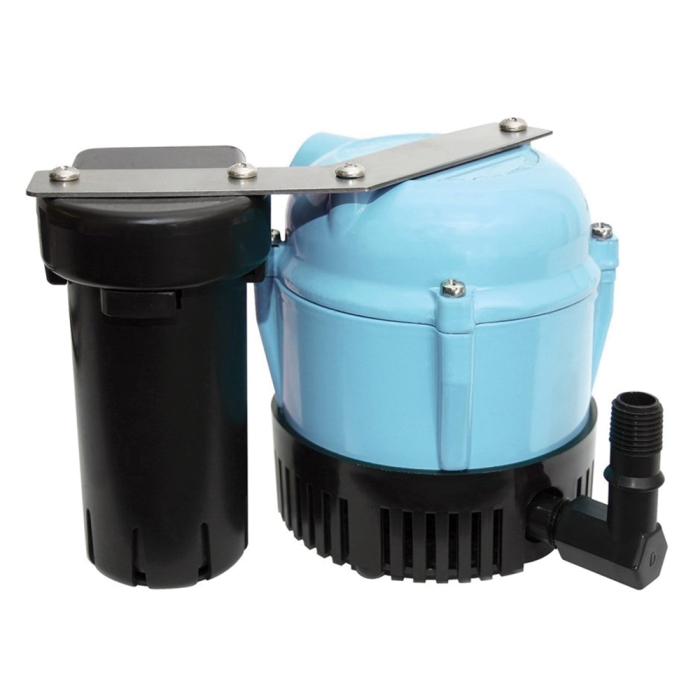

1-ABS Pump Epoxy Coated Cast Aluminum Condensate Removal Pump, 115 V, 1/150 hp, 205 gph, 10 ft

  • Manufacturers: Franklin Electric
  • Brand Name: Little Giant
  • PN: LG550521
  • MPN: 550521
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.1 A
Connection Size      :      1/4 in MNPT Discharge
Cord Length      :      9 ft
Dimension      :      6.09 in W x 4.31 in H
Finish      :      Epoxy Coated
Flow Rate      :      205 gph
Frequency Rating      :      60 Hz
HP Rating      :      1/150 hp
Impeller Material      :      Nylon
Item Name      :      Condensate Removal Pump
Material      :      Cast Aluminum
Maximum Feet of Head      :      10 ft
Pressure Rating      :      4.3 psi
Series      :      1-ABS
Temperature Rating      :      120 deg F
Voltage Rating      :      115 V
Wattage      :      70 W
  • Permanently lubricated motor bearings require no maintenance during life of pump
  • Oil-filled to maximize heat dissipation
  • Epoxy coated cast aluminum pump housing
  • Automatic on-off operation
  • Easy-to-remove float housing for servicing
  • Includes removable inlet filter screen
  • Includes 90 deg 1/4 in MNPT adapter (suitable for 1/2 in ID vinyl tubing)
  • Low on and off level - turns on at 1-3/4 in and off at 1-1/4 in will operate in most standard condensate drain pans
  • Includes 9 ft power cord with molded plug (115 V versions)
  • Suitable for intermittent water temperature up to 120 deg F

Standards/Certifications: cCSAus certified

Applications: For removal of condensate from an air conditioner drain pan or reservoirs

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19094_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19092_Spec.pdf
