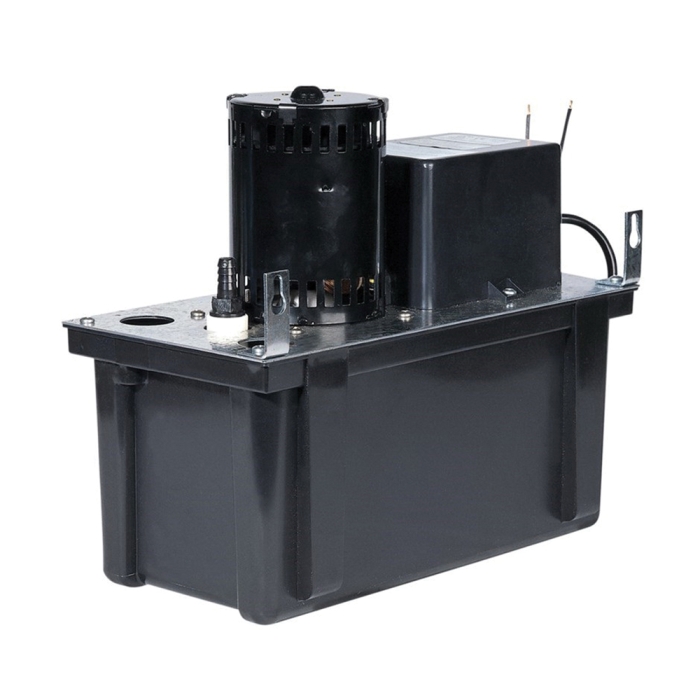

Little Giant 553201

VCL-24ULS Pump ABS Condensate Removal Pump, 115 V, 1/18 hp, 210 gph, 24 ft

  • Manufacturers: Franklin Electric
  • Brand Name: Little Giant
  • PN: LG553201
  • MPN: 553201
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      2.5 A
Connection Size      :      1/4 in FNPT x 3/8 in OD Barbed Discharge
Cord Length      :      6 ft
Dimension      :      12.11 in W x 10.4 in H x 6 in D
Flow Rate      :      210 gph
Frequency Rating      :      60 Hz
HP Rating      :      1/18 hp
Impeller Material      :      Polypropylene
Item Name      :      Condensate Removal Pump
Material      :      ABS
Maximum Feet of Head      :      24 ft
Pressure Rating      :      10.4 psi
Series      :      VCL-24ULS
Temperature Rating      :      120 deg F
Voltage Rating      :      115 V
Wattage      :      148 kW
  • 1 gal collection tank
  • Vertical centrifugal pump design
  • 1/18 hp, fan cooled, concentric motor
  • Stainless steel motor shaft
  • Automatic start and stop operation
  • Includes float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
  • Overflow detection switch - 2-function NO and NC operation (set to NO from factory for equipment shut-down connection)
  • Overflow detection switch includes (2) 5 in switch lead wires
  • 3/8 in barbed discharge adapter (for use with 3/8 in ID vinyl tubing) installed
  • Optional check valve adapter for 3/8 in vinyl tubing included in box
  • (2) 1-1/8 in Dia inlet openings
  • Thermally protected, fan cooled motor
  • Maximum water temperature 120 deg F
  • 6 ft, 3-conductor cable with grounded 3-prong plug

Standards/Certifications: cCSAus certified

Applications: For removal of condensate from an air conditioner, suitable For high efficiency, gas furnace condensation and condensing boilers
