Little Giant 553240

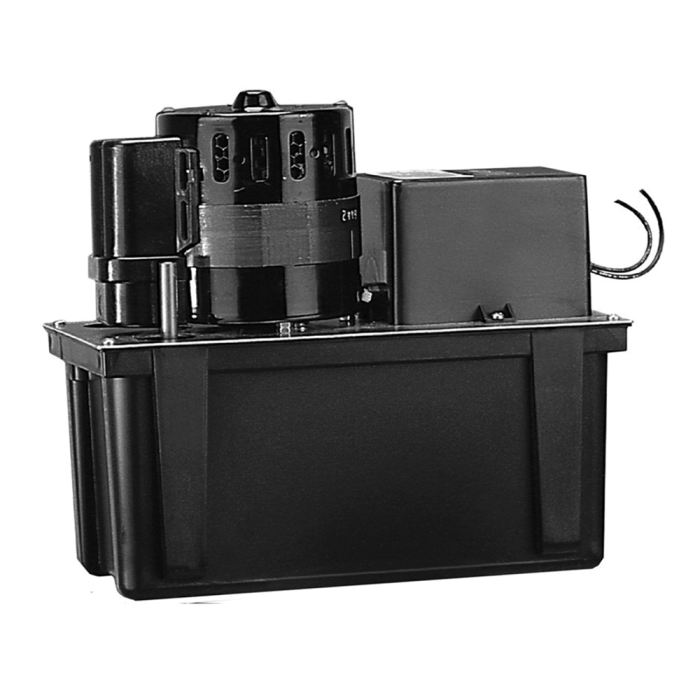

VCL-45ULS Pump ABS Condensate Removal Pump, 115 V, 1/5 hp, 445 gph, 45 ft
- Manufacturers: Franklin Electric
- Brand Name: Little Giant
- PN: LG553240
- MPN: 553240
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 3.5 A |
| Connection Size | : | 3/8 in OD Copper Discharge |
| Cord Length | : | 6 ft |
| Dimension | : | 12.11 in W x 10.85 in H x 6 in D |
| Flow Rate | : | 445 gph |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 hp |
| Impeller Material | : | Polypropylene |
| Item Name | : | Condensate Removal Pump |
| Material | : | ABS |
| Maximum Feet of Head | : | 45 ft |
| Pressure Rating | : | 19.5 psi |
| Series | : | VCL-45ULS |
| Temperature Rating | : | 120 deg F |
| Voltage Rating | : | 115 V |
| Wattage | : | 185 kW |
- 1 gal collection tank
- Vertical centrifugal pump design
- 1/5 hp, fan cooled, PSC motor
- Stainless steel motor shaft
- Automatic start and stop operation
- Includes float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
- Overflow detection switch - 2-function NO and NC operation (set to NO from factory for equipment shut-down connection)
- Overflow detection switch includes (2) 5 in switch lead wires
- 3/8 in OD copper tubing discharge
- 1-1/8 in Dia inlet opening
- Thermally protected motor
- Maximum water temperature 120 deg F
- 6 ft, 3-conductor cable with grounded 3-prong plug
Standards/Certifications: cCSAus certified
Applications: For removal of condensate from an air conditioner, suitable For high efficiency, gas furnace condensation and condensing boilers
