Little Giant

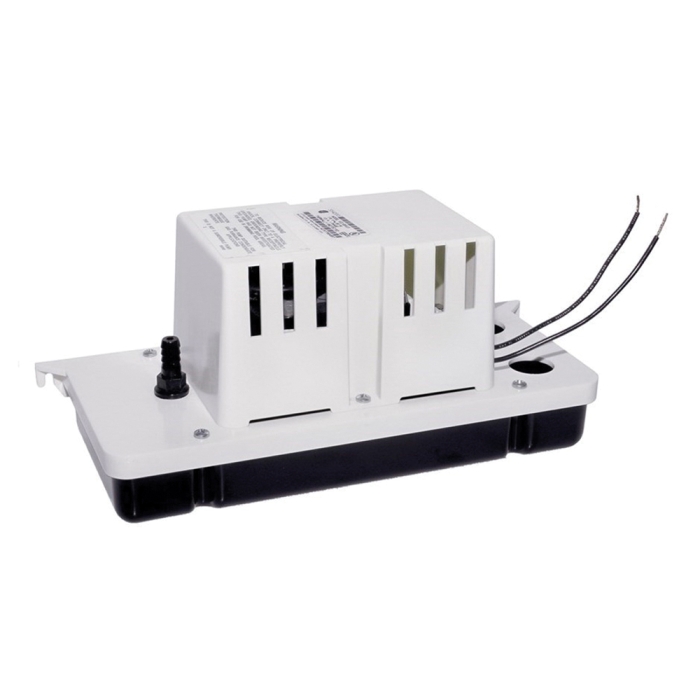

VCC-20ULS Pump ABS Condensate Removal Pump, 115 V, 1/30 hp, 80 gph, 20 ft

  • Manufacturers: Franklin Electric
  • Brand Name: Little Giant
  • PN: LG554201101
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.5 A
Connection Size      :      3/8 in OD Barbed Discharge
Cord Length      :      6 ft
Dimension      :      12 in W x 5.09 in H x 5 in D
Flow Rate      :      80 gph
Frequency Rating      :      60 Hz
HP Rating      :      1/30 hp
Impeller Material      :      Glass-Filled Polypropylene
Item Name      :      Condensate Removal Pump
Material      :      ABS
Maximum Feet of Head      :      20 ft
Pressure Rating      :      8.6 psi
Series      :      VCC-20ULS
Temperature Rating      :      120 deg F
Voltage Rating      :      115 V
Wattage      :      93 kW
  • Low profile for limited space
  • Vertical centrifugal pump design
  • Stainless steel motor shaft
  • Automatic start, stop and high-level water detection (overflow detection switch)
  • 3/8 in OD barbed discharge adapter with built-in check valve (installed on the pump)
  • 1/4 in OD barbed discharge adapter (included in the box)
  • 2-inlet openings 1-1/8 in
  • Overflow detection float activated switch
  • (2) 5 in overflow detection switch lead wires
  • Thermally protected, fan cooled motor
  • Intermittent liquid temperature up to 120 deg F
  • 6 ft, 3-conductor cable with grounded 3-prong plug

Standards/Certifications: cCSAus certified

Applications: For removal of condensate from an air conditioner, suitable For high efficiency and gas furnace condensation

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19094_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19097_Spec.pdf
