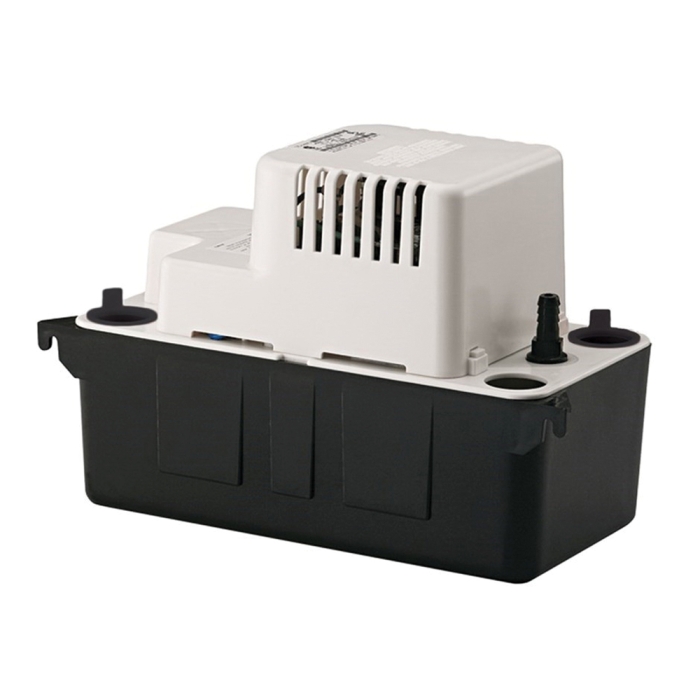

Little Giant 554630
VCMA-20ULS-PRO Pump ABS Condensate Removal Pump, 115 V, 1/30 hp, 80 gph, 20 ft
- Manufacturers: Franklin Electric
- Brand Name: Little Giant
- PN: LG554630
- MPN: 554630
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 1.5 A |
| Connection Size | : | 3/8 in OD Barbed Discharge |
| Cord Length | : | 6 ft |
| Dimension | : | 11 in W x 7 in H x 5 in D |
| Flow Rate | : | 80 gph |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/30 hp |
| Impeller Material | : | Glass-Filled Polypropylene |
| Item Name | : | Condensate Removal Pump |
| Material | : | ABS |
| Maximum Feet of Head | : | 20 ft |
| Pressure Rating | : | 8.7 psi |
| Series | : | VCMA-20ULS |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V |
| Wattage | : | 93 kW |
- 1/2 gal collection tan
- Vertical centrifugal pump design
- Stainless steel motor shaft
- Automatic start and stop operation
- Some models equipped with float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
- For models with overflow detection switch 2-function NO and NC operation (set to NO from factory for equipment shut-down connection)
- Models equipped with overflow detection switch include (2) 5 in switch lead wires
- 3/8 in OD barbed discharge adapter with built-in check valve
- Three 1-1/8 in Dia inlet openings (2-fitted with removable cap plug)
- Thermally protected, fan cooled motor
- Built-in wall mount tabs on tank
- Removable pump float locking tab for safety during transportation (remove at time of installation)
- Maximum water temperature 140 deg F
- 6 ft, 3-conductor cable with grounded 3-prong plug
Standards/Certifications: cCSAus certified
Applications: For removal of condensate from an air conditioner, suitable For high efficiency, gas furnace condensation and condensing boilers
