Harrington Inc H30E-50-40NPT/CAP

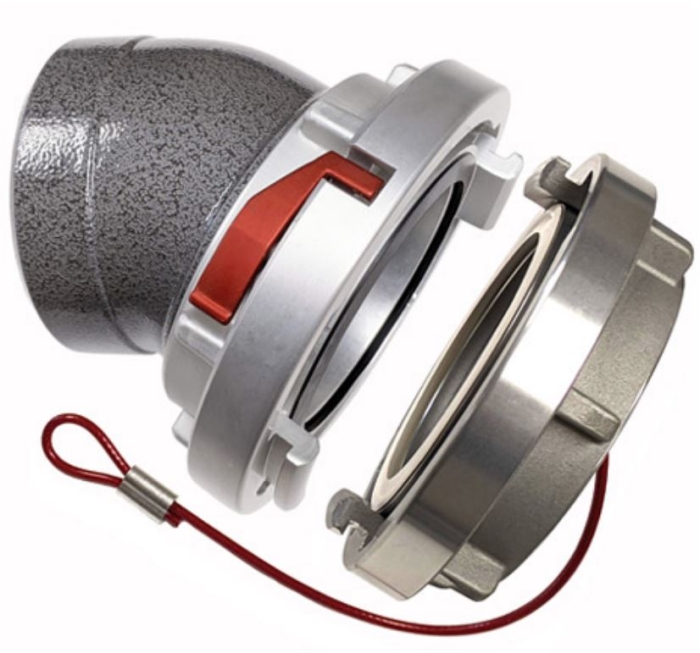

Storz adapter 5″ (125) with Storz-Lok x 4″ NPT female rigid anodized with 5″ Storz Cap/cable

  • Manufacturers: Harrington Inc
  • Brand Name: Harrington Inc
  • PN: H30E-50-40NPT/CAP
  • MPN: H30E-50-40NPT/CAP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      5 x 4 in
Connection Type      :      Storz x Swivel FIPT
Dimension      :      7-11/16 in L x 3-1/8 in H
Finish      :      Hard Coated
Item Name      :      Elbow
Material      :      Aluminum Alloy
Pressure Rating      :      4 MPa
Type      :      30 deg

Harrington Storz elbow adapters are rated for a working pressure of 250 PSI for all fire department connections. Elbows are hard coat aluminum anodized to Military Specification, Type 3 then powder coated for a nice smooth finish. “Forged” Storz heads provide maximum strength. No hidden imperfections like those found in cast Storz heads. All female swivels utilize stainless steel ball bearing or aluminum roller bearings, no plastic. Available 2.5” to 6”. All Storz heads 4” and larger include All Metal NFPA compliant Storz-Lok.

Applications: For use with fire protection water supply
