Argco 6520185

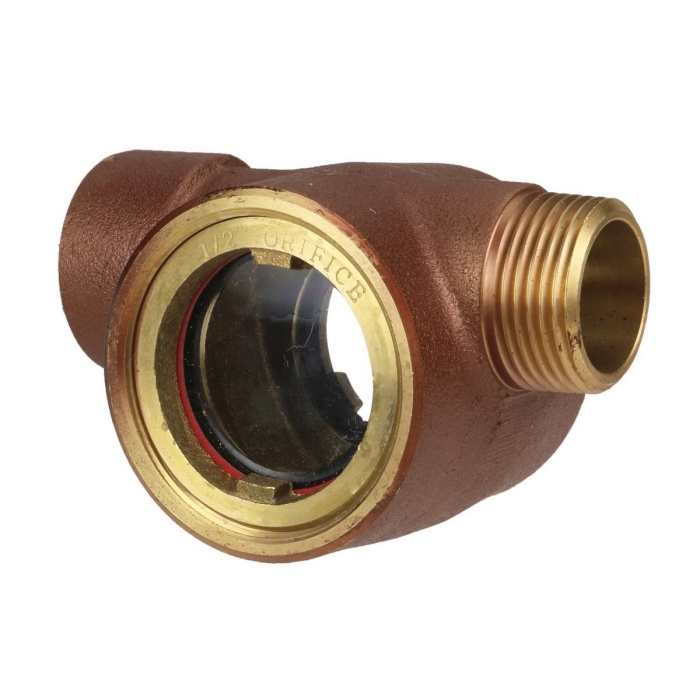

Brass Sight Glass with Restricted Orifice, 1 in MNPT x FNPT, 1/2 in Orifice

  • Manufacturers: Argco
  • Brand Name: Argco
  • PN: 65-20-185
  • MPN: 6520185
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      MNPT x FNPT
Depth      :      3.91 in
Item Name      :      Sight Glass with Restricted Orifice
Material      :      Brass
Orifice Size      :      1/2 in
Width      :      2-1/4 in
  • Sight glass 1 in IPS with restricted orifice
  • Flow indicator with 1/2 in restricted orifice for inspector's test flow of 200 psi
  • This assures lasting performance and serviceability
  • Flow can be viewed through two high-impact Lexan windows on either side of the sight glass
  • All models feature male by female thread patterns for easy "in-line" installation
  • The restricted orifice types can be used to simulate system sprinkler head flow which can be viewed through either window
  • Not designed to be used under pressure
