SharkBite

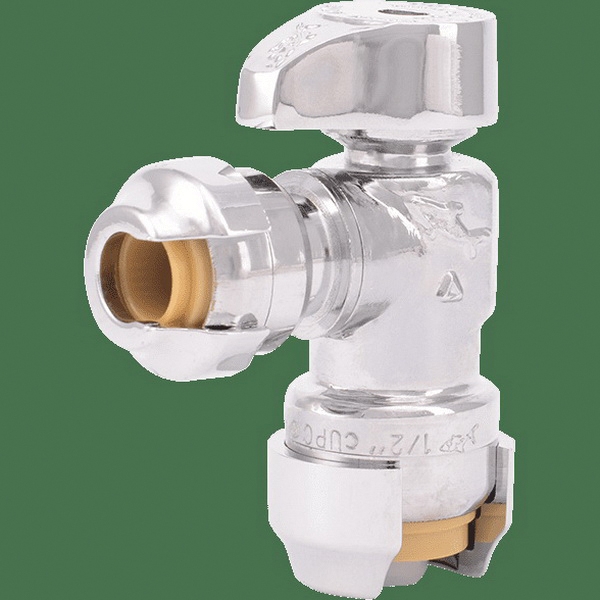

Brass Angle Supply Stop Valve, 1/2 x 1/4 in, Push-to-Connect x Compression, Chrome-Plated, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: UR23336
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Brass
Connection Size      :      1/2 x 1/4 in
Connection Type      :      Push-to-Connect x Compression
Dimension      :      1.51 in L x 2.58 in H
Finish      :      Chrome-Plated
Item Name      :      Angle Supply Stop Valve
Material      :      Brass
Pressure Rating      :      125 psi
Temperature Rating      :      30 - 160 deg F
  • Chemical-resistance - DZR low-lead brass valve body and shut-off ball for superior performance
  • Ease of install - push-to-connect stop valve connects to copper, PEX, CPVC or PE-RT pipe
  • EPDM O-ring, stainless steel grab ring, polysulfone tube liner
  • 2-years warranty

Standards/Certifications: ASME A112.18.1/CSA B125.1, ANSI/NSF 61 and 372 certified

Applications: For use in hot and cold potable waster residential or commercial applications
