SharkBite 23808-0045

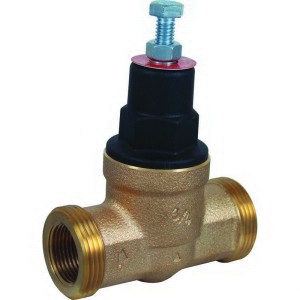

Direct SharkBite EB-45 Bronze Pressure Regulating Valve, 3/4 in, Push-to-Connect, 200 psi, 10 - 70 psi Outlet, 45 psi Factory Setting

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: 23808-0045
  • MPN: 23808-0045
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      Push-to-Connect
Dimension      :      4.48 in L x 5.12 in H
Item Name      :      Pressure Regulating Valve
Material      :      Bronze
Model      :      EB-45
Pressure Rating      :      200 psi, 10 - 70 psi Outlet, 45 psi Factory Setting
Seal Material      :      EPDM
Sub Brand      :      Direct SharkBite
Temperature Rating      :      180 deg F

The EB-45 series is a lead-free half-cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union in 1/2 through 2 in sizes. A connection for a pressure gauge is also available for 3/4 and 1 in models.

  • Modular cartridge design reduces the number of parts requiring service - quick and easy service/repair
  • Rugged bronze body - superior reliability, improved user safety
  • Compact pressure reducing and regulating valves - designed for small and economic considerations
  • By-pass mechanism integral with the cartridge - no add-on or small parts, longer-life and more reliable performance
  • Every valve is tested for performance prior to shipping: specify and install with confidence
  • Assembled and tested in the USA
  • Reinforced engineered polymer or iron spring chamber
  • Steel adjusting spring, reinforced EPDM diaphragm, polyphenylene ether body seat, EPDM seat disc, stainless steel/brass piston, stainless steel strainer screen, EP O-ring

Standards/Certifications: ASSE 1003, CSA B356, ANSI/NSF 61 and 372 certified, IAPMO listed

Applications: For commercial and residential applications
