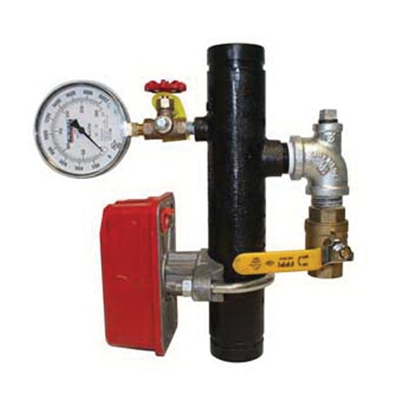

The model CR commercial riser comes factory assembled with the necessary accessories for a cost effective, yet complete riser assembly. These assemblies are UL Listed, ULC listed and FM approved as a unit. Cast-on lettering or label on the manifold identifies manifold pipe size, flow direction, gauge and drain outlets and UL listing and FM approval markings.

• Cast stainless steel body construction for threaded manifolds
• Painted cast ductile iron or welded steel body construction for grooved manifolds
• Brass and galvanized trim
• Factory assembled and pressure tested
• Available with test and drain valves in various orifice sizes
• Same end-to-end dimensions for the 2 - 8 in grooved sizes
• Approved for installation in horizontal or vertical positions
• Built-in drain-port allows hydrostatic testing without draining the system
• 1/4 in 3-way valve allows for easy testing and replacing of pressure gauge
• Dedicated cULus listed, ULC listed and FM approved water-flow detector assures optimum sensitivity

Standards/Certifications: UL and ULC listed, FM approved

Applications: For commercial applications
