Zoeller Pumps 264-0001

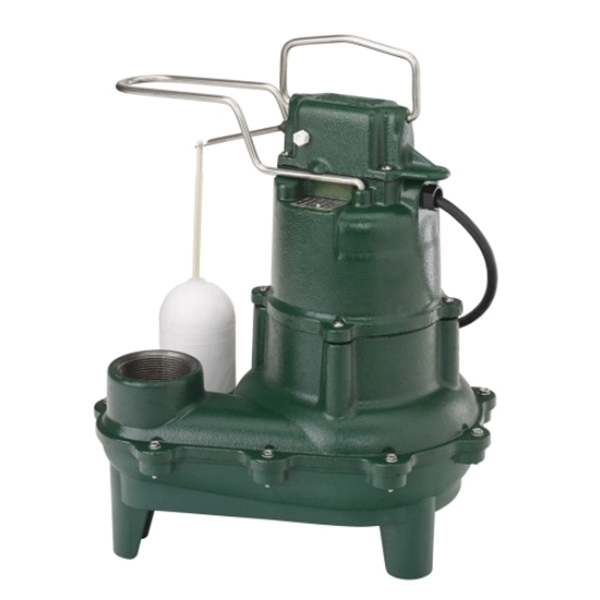

M264 Epoxy Powder Coated Cast Iron Automatic 1-Seal Submersible Sewage/Effluent Pump, 115 V, 1725 rpm, 4/10 hp, 90 gpm, 18 ft
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 264-0001
- MPN: 264-0001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 9.4 A |
| Bearing Type | : | Sleeve |
| Connection Size | : | 2 in NPT |
| Cord Length | : | 10 ft |
| Dimension | : | 13-9/64 in W x 14-3/4 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 90 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 4/10 hp |
| Impeller Material | : | Plastic |
| Item Name | : | Submersible Sewage/Effluent Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 18 ft |
| Model | : | M264 |
| Phase | : | 1 ph |
| RPM | : | 1725 rpm |
| Series | : | Waste-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 115 V |
- Float operated, submersible (NEMA 6), 2-pole switch
- Durable, cast iron construction - switch cap, motor and pump housing
- Engineered plastic base
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Corrosion-resistant, powder coated epoxy finish
- Hermetically-sealed, automatic reset thermal overload protection
- Upper and lower sleeve bearings running in bath of oil
- Carbon and ceramic shaft seal
- Passes 2 in spherical solids
- 2 in NPT discharge
- 12-1/2 in ON point, 4-1/2 in OFF point
- Class B permanent split capacitor
- Oil-filled cooling
- Auto reset thermal overload motor protection
- UL listed, 3-wire cord and plug
- Cast iron cap, neoprene or Buna-N gasket
- 3-years warranty
Standards/Certifications: cCSAus certified, SWPA, UL 778 listed
Applications: For residential and light commercial sewage and dewatering
