RWV 267 2

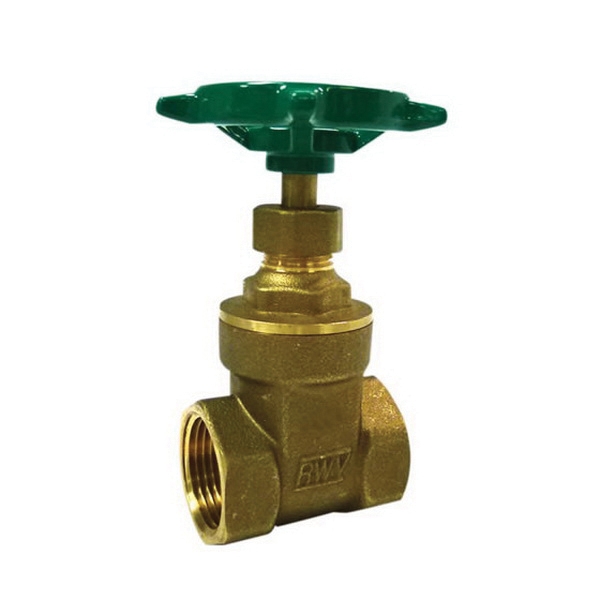

267 Brass Non-Rising Stem Gate Valve, 2 in, FNPT

  • Manufacturers: Red-White Valve Corporation
  • Brand Name: RWV
  • PN: 267.2
  • MPN: 267 2
  • UPC: 670779267203
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      FNPT
Dimension      :      2.3 in L
Disc Material      :      Brass
Item Name      :      Gate Valve
Material Specifications      :      ASTM A36, ASTM B124, ASTM B584 C85400
Material      :      Brass
Model      :      267
Operator Type      :      Aluminum Handwheel
Packaging Material      :      PTFE
Pressure Rating      :      200 psi WOG
Stem Material      :      Brass
Temperature Rating      :      212 deg F
Type      :      Non-Rising Stem
  • Inserted brass bonnet
  • Solid wedge disc
  • Brass lock nut, gland nut, gland, steel nut, aluminum tag, PTFE gasket

Standards/Certifications: ASME B1.20.1
