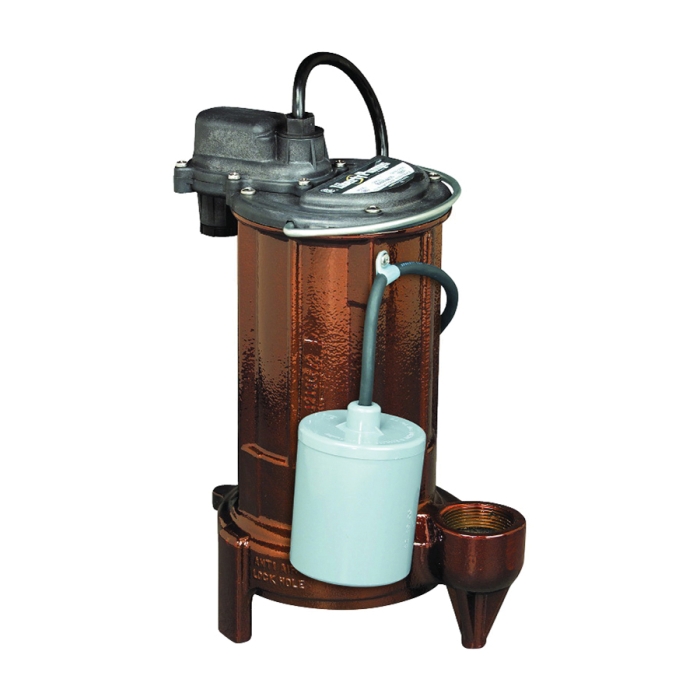

Liberty Pumps 290
Epoxy Powder Coated Cast Iron Manual Submersible Effluent/Sump Pump, 115 V, 3450 rpm, 3/4 hp, 78 gpm, 48 ft
- Manufacturers: Liberty Pumps
- Brand Name: Liberty Pumps
- PN: 290
- MPN: 290
- UPC: 671812120820
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 10.4 A Full Load, 24 A Locked Rotor |
| Bearing Type | : | Ball |
| Connection Size | : | 1-1/2 in NPT |
| Cord Length | : | 10 ft |
| Dimension | : | 6.3 in W x 9-1/2 in L x 13 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 78 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Impeller Material | : | Polymer |
| Item Name | : | Submersible Effluent/Sump Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 48 ft |
| Phase | : | 1 ph |
| RPM | : | 3450 rpm |
| Temperature Rating | : | 140 deg F |
| Type | : | Manual |
| Voltage Rating | : | 115 V |
The Liberty 290 series provides a cost effective midrange pump for on site waste water systems, liquid waste transfer and commercial heavy-duty sump pump applications that require higher head or more flow. Designed around Liberty's unique uni-body casting, the 290 series will provide years of reliable performance.
- 3/4 in solid handling
- 1-1/2 in discharge
- Quick-disconnect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
- Permanently lubricated upper and lower bearings
- Oil-filled, hermetically-sealed motor with thermal overload protection
- Stainless steel, removable bottom screen
- 416 stainless steel rotor shaft
- Stainless steel fasteners
- Liberty's unique, 1-piece uni body casting
- Semi-open impeller permitting passage of solids up to 3/4 in
- 78 gpm at 5 ft of total dynamic head
- Class B stator winding
- 3-years warranty
Standards/Certifications: cCSAus, SSPMA certified
