Hoffman Speciality 401485

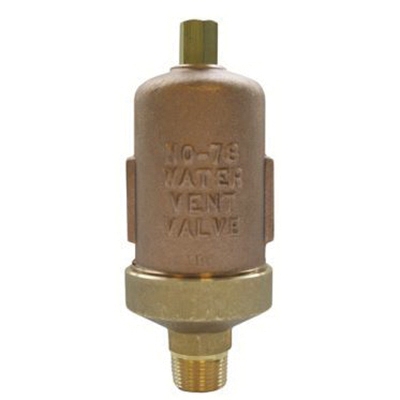

78 Cast Brass Water Main Vent Valve, 3/8 in, NPT

  • Manufacturers: Xylem
  • Brand Name: Hoffman Speciality
  • PN: HO401485
  • MPN: 401485
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/8 in
Connection Type      :      NPT
Dimension      :      2-11/16 in W x 6-1/2 in H
Item Name      :      Water Main Vent Valve
Material      :      Cast Brass
Model      :      78
Pressure Rating      :      150 psig
Temperature Rating      :      250 deg F
  • Tapped at top for 1/8 in NPT safety drain connection for discharging moisture
  • Body unscrews for easy cleaning
  • Built-in check valve
  • 3/4 in NPT straight shank

Applications: For use on high pressure hot or cold water or glycol mains and process applications with specific gravity greater than 0.7
