Hoffman Speciality 404336

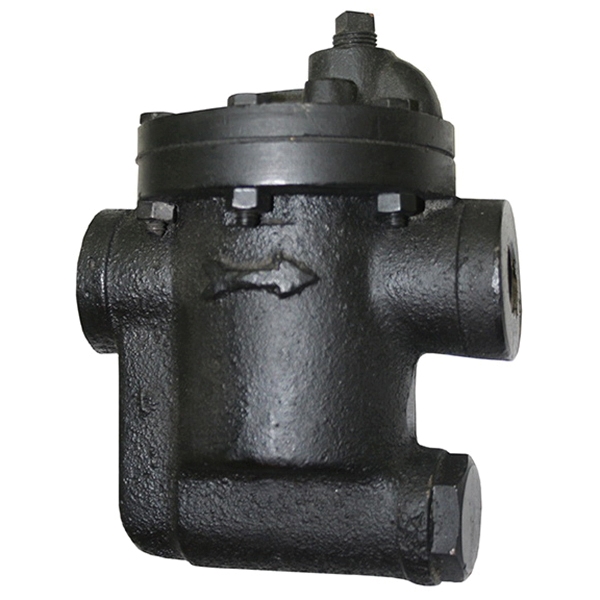

BearTrap B1125A-3 Cast Iron Inverted Bucket Steam Trap, 3/4 in, NPT, 250 psig

  • Manufacturers: Xylem
  • Brand Name: Hoffman Speciality
  • PN: HO404336
  • MPN: 404336
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      6-15/16 in L x 3-13/16 in W x 7-1/4 in H
Item Name      :      Inverted Bucket Steam Trap
Material      :      Cast Iron
Model      :      B1125A-3
Nominal Size      :      3/4 in
Pressure Rating      :      250 psig
Series      :      B1
Sub Brand      :      BearTrap
Temperature Rating      :      450 deg F
  • Removable covers for easy in line service
  • Erosion-resistant covers
  • Stainless steel internal components
  • Resistant to moderate water hammer
  • Optional built-in thermic vent for faster heating
  • Optional built-in strainer to reduce the number of piping connections
  • Maximum capacities to 1700 lb/hr
  • No strainer

Standards/Certifications: WW-T-696-E type I, style B, class 1-7 certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6895_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6967_Install.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6967_Spec.pdf
