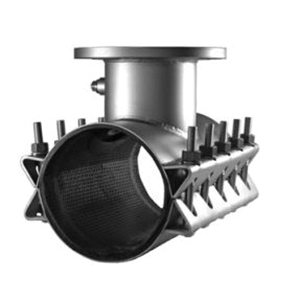

The sleeve for taps requiring full circumferential seal with high safety factor. Strong stainless construction with independent bolting for higher bolt torque capabilities. As a standard, JCM tapping sleeve bolt patterns are configured for installation of the valve on a horizontal plane with a vertical valve stem position.

• Extra bolting power - the true tapping sleeve design of this sleeve incorporates replaceable, self-aligning bolts, which facilitate conversion of high bolt torques to high gasket pressure, can be torqued to 125 ft/lb, this increases gasket sealing pressure and pressure holding capability
• Full circumferential seal - the extra bolting power assures the gasket will seal the full circumference of the pipe, this provides insurance against beam breaks in size on size taps, molded in recessed bridge plate assures even gasket pressure throughout the range of the sleeve
• Stronger yet lighter than cast sleeves - extra strength eliminates possible cracking of the sleeve or flange, reduced weight speeds installation and reduces the load placed on the pipe
• Extra wide for support and stability - extra width and heavier neck and body material provide extra reinforcement of the outlet and extra stability during the tapping process
• All stainless construction provides extra corrosion-resistance, the stainless steel flange, outlet and body join as one unit of similar metals for highest structural strength and corrosion-resistance
• (10) bolts

Standards/Certifications: ANSI/AWWA C223, ANSI/NSF 61, MSS-SP 60, MSS-SP 124 certified

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS7298_Cat.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS7298_Spec.pdf
