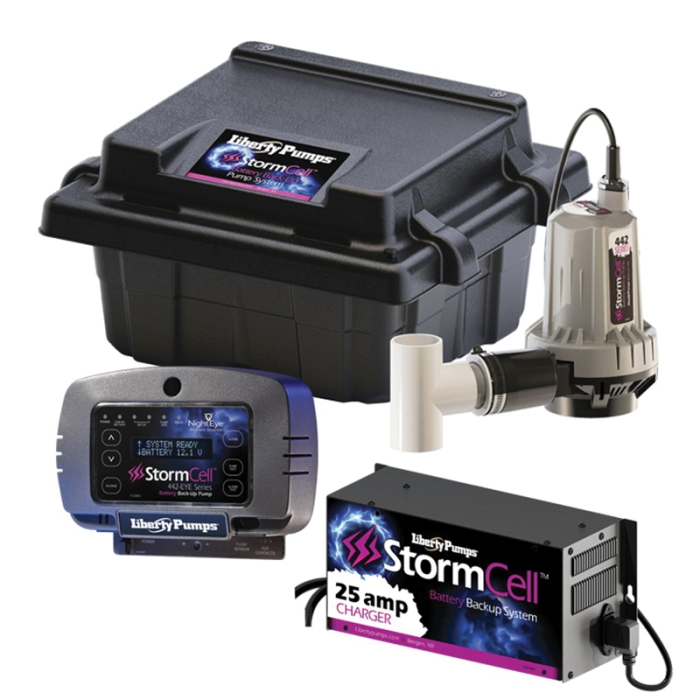

Liberty Pumps 442-10A

StormCell 442 Battery Back-Up Pump, 12 VDC

  • Manufacturers: Liberty Pumps
  • Brand Name: Liberty Pumps
  • PN: 442-10A
  • MPN: 442-10A
  • UPC: 671812137941
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      10 A
Flow Rate      :      46 gpm at 12.1 V, 49 gpm at AC Power On
Item Name      :      Battery Back-Up Pump
Maximum Feet of Head      :      25 ft
Series      :      442
Sub Brand      :      StormCell
Voltage Rating      :      12 VDC

Liberty is introducing the 442 series. A professional-grade line of battery backup pump systems called StormCell these systems feature high-output pumping, an energy-efficient DC pump for longer run times and professional-grade charger/controllers. They are also available with optional NightEye technology for remote monitoring and notifications. The line of StormCell products also will include high performance 12 V batteries that are USA made and designed for optimum performance in backup pump applications. These batteries are available in Group 27 or Group 31 and in flooded or AGM styles.

  • Energy-efficient 12 VDC pump
  • Professional-grade 10 A charger/controller
  • Suitable with wet cell, AGM or gel-type batteries
  • Microprocessor with energy-efficient switch mode technology
  • Single battery box accommodates group 27 or 31 batteries
  • Remote wall mount user interface with LCD display
  • Audio alarm (features a self-reset after silence)
  • Super bright red LED alarm ring
  • 9 V battery backup operates alarm in standby mode for up to 72 hr
  • Alarm and pump test buttons
  • Green LED AC power light and audible notification of power lost
  • Blue LED pump run light
  • Auxiliary contacts (24 VDC, 100 mA maximum)
  • Compact "snap-on" activation float with integral alarm float (fits 1-1/4 and 1-1/2 in pipe)
  • High water float acts as a redundant "on" float for the pump
  • Tee and fittings for standard installations
  • 8-days cycle run time
  • 3-years warranty

Standards/Certifications: cCSAus, FCC, BC certified, cRUus listed
