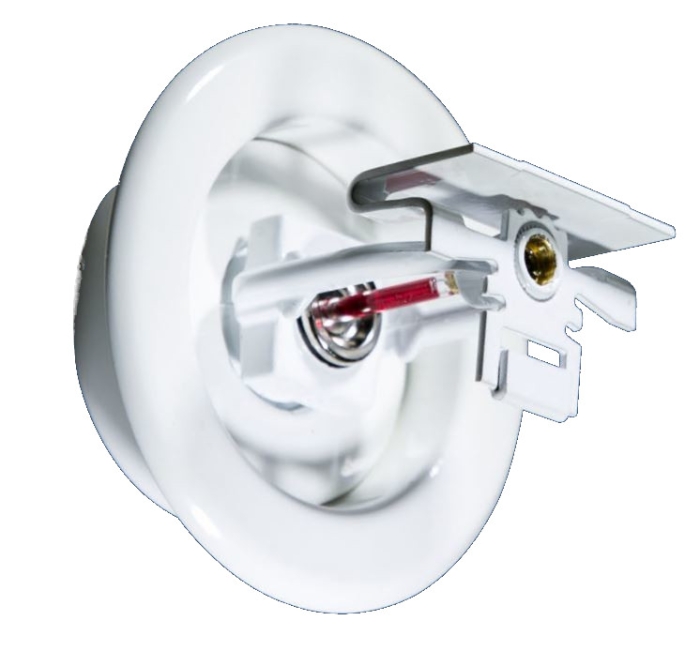

F1RES44 White-Painted Brass Alloy Horizontal Sidewall Recessed Sprinkler, 1/2 in NPT, 155 deg F, 4.4 K-Factor

  • Manufacturers: Reliable Automatic Sprinkler
  • Brand Name: Reliable
  • PN: 44WN
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Finish      :      White-Painted
Item Name      :      Horizontal Sidewall Recessed Sprinkler
K-Factor      :      4.4
Material      :      Brass Alloy
Model      :      F1RES44
Nominal Size      :      1/2 in
Pressure Rating      :      175 psi
Temperature Rating      :      155 deg F

Model F1Res series sprinklers are residential sprinklers with a 3 mm glass bulb operating element. A variety of K-Factors as well as recessed and conical concealed options are available. The F1Res Series sprinklers are specially engineered for fast thermal response to meet the requirements of UL 1626. They are intended for installation in accordance with NFPA 13, 13R, and 13D.

  • 16 x 20 ft maximum coverage area
  • 3 mm glass bulb thermal sensor
  • Copper alloy button
  • Nickel alloy with PTFE sealing assembly
  • Bronze alloy load screw
  • Bronze alloy deflector
  • Model W2, model GFR2 (recessed) sprinkler wrenches

Standards/Certifications: cULus listed, NFPA 13, 13R and 13D approved
