General Wire Spring 105240

Aluminum Drain Rooter with Cable for Cleaning Jobs Cleaner and Easier, 230 - 240 V, 230 - 240 V

  • Manufacturers: General Wire Spring
  • Brand Name: General Wire Spring
  • PN: PH-DR-C
  • MPN: 105240
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Height      :      15 in
Includes      :      Drum, Cutter Set, Motor, Foot Pedal
Item Name      :      Drain Rooter with Cable
Length      :      22 in
Material      :      Aluminum
RPM      :      0 - 400 rpm
Speed Rating      :      0 - 400 rpm
Type      :      PH
Voltage Rating      :      230 - 240 V
Width      :      13-1/2 in

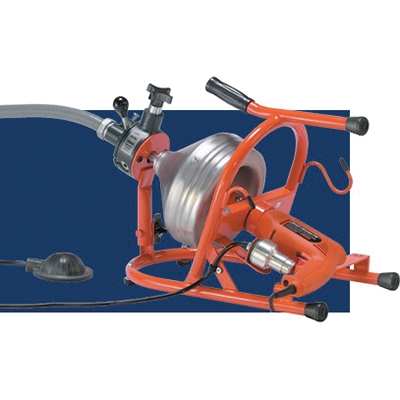

The Drain-Rooter PH feeds and retrieves the cable at up to 16 ft per min. A 4 ft guide hose eliminates cable whipping, dirty fixtures and messy floors. And the drum speed can be varied by changing the pressure on the foot pedal, making it easier to thread the boring head through strainers or crossbars. The drain-rooter PH is a real labor-saver on long jobs or when working in a cramped area where the weight of the machine could get burdensome. The drain-rooter PH can be operated in both horizontal and vertical positions to get closer to the drain opening.

  • Clears clogged sinks, tubs and laundry drains in 1-1/4 - 3 in lines
  • Variable-speed power cable feed drives and retrieves cable at up to 16 fpm
  • 4 ft guide tube keeps hands and job site clean
  • Pneumatic foot pedal controls motor-speed
  • Quick-change cartridge makes switching cables clean and easy
  • Holds 50 ft of 1/4 or 5/16 in or 35 ft of 3/8 in flexicore cable
  • Flexicore wire rope center cables have unequaled strength yet the right amount of flexibility
  • Made in USA

Standards/Certifications: cULus listed

Applications: For cleaning jobs cleaner and easier

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2320_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2320_Spec.pdf
