Legend Valve 107-195

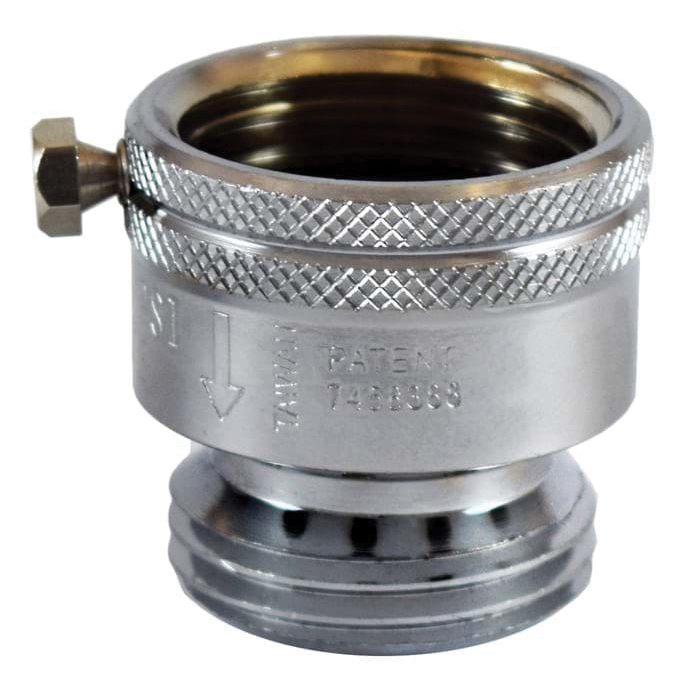

T-553C Forged Brass Vacuum Breaker, 3/4 in, FGHT x MGHT, Lead-Free

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 107-195
  • MPN: 107-195
  • UPC: 662545003153
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FGHT x MGHT
Dimension      :      1-1/4 in L x 1.26 in H
Item Name      :      Vacuum Breaker
Material Specifications      :      ASTM A108
Material      :      Forged Brass
Pressure Rating      :      125 psi CWP
Series      :      T-553C
Temperature Rating      :      180 deg F
  • Lead-free design is suitable for all no-lead potable water installations, in full compliance of the National lead-free plumbing law
  • Automatic vacuum interruption prevents backsiphonage
  • Break-away set screw for tamper-resistant installation
  • Not for continuous pressure installations
  • Neoprene washer, acetal resin piston, piston seal retainer, stainless steel piston spring, chrome-plated mild carbon steel set screw, NBR piston seal
  • Hose bib vacuum breaker

Standards/Certifications: ASSE 1011, ANSI/ASME B1.20.7, CSA B64.2, ANSI/NSF 372 certified

Applications: For all no-lead potable water installations
