Legend Valve 107-263NL

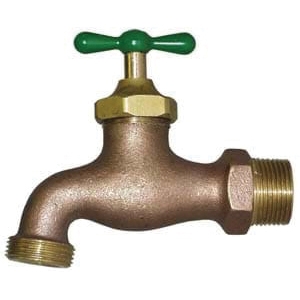

T-531HP Cast Brass Hose Bibb, 1/2 x 3/4 in, MNPT x MGHT, Lead-Free

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 107-263NL
  • MPN: 107-263NL
  • UPC: 662545086606
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 3/4 in
Connection Type      :      MNPT x MGHT
Dimension      :      4.09 in L x 2.36 in H
Item Name      :      Hose Bibb
Material Specifications      :      ASTM B124, ASTM B16, ASTM B584, UNS C36000, UNS C37700, UNS C85710
Material      :      Cast Brass
Operator Type      :      Zinc T-Handle
Pressure Rating      :      125 psi CWP
Seat Material      :      NBR
Series      :      T-531HP
Stem Material      :      Cast Brass
  • Lead-free
  • Larger, heavy-duty body, bonnet, stem and handle are designed for frequent-use commercial or residential water applications
  • Oversized hose-threaded outlet with extra thread, provides a positive-seal connection between valve and hose end
  • 6-sided wrench flats at the inlet connection are 45% larger than standard hose bib flats, permitting more tool contact and easier installation
  • All sizes feature uni-directional flow, 2-1/4-turn operation and large waterways
  • Hot-rolled carbon steel handle screw, forged brass packing nut, seat screw, stainless steel anti-friction washer, NBR stem packing, bonnet gasket, cast brass bonnet

Standards/Certifications: ANSI/ASME B1.20.1, ANSI/ASME B1.20.7

Applications: For commercial or residential water application
