Legend Valve 108-153A

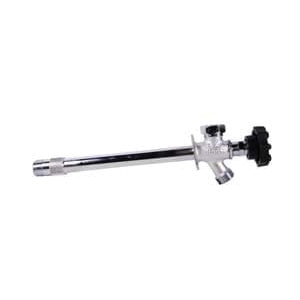

T-550 Brass Frostfree Anti-Siphon 1/4-Turn Sillcock Valve, 1/2 x 8 in, MNPT/Sweat

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 108-153
  • MPN: 108-153A
  • UPC: 662545080086
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 8 in
Connection Type      :      MNPT/Sweat
Dimension      :      13.77 in L x 3.49 in H
Item Name      :      Sillcock Valve
Material Specifications      :      ASTM B16 UNS C36000, ASTM C27000, ASTM D1784
Material      :      Brass
Operator Type      :      Aluminum and TPR Handwheel
Pressure Rating      :      125 psi CWP
Series      :      T-550
Stem Material      :      Brass
Type      :      Frost-Free, Anti-Siphon, 1/4-Turn
  • Patented softouch rubber-clad handwheel
  • 1/4-turn operation
  • Dual ceramic discs offer durable, positive shut-off
  • Oversized, angled mounting flange with screw slots
  • Durable corrosion-resistant chrome-plated body
  • Brass handle screw, outer tube, forged brass bonnet nut, packing nut, cartridge stem, check valve piston, spacer, cartridge end, end adapter, vacuum breaker cap, aluminum identification plate
  • NBR bonnet nut O-ring, stem packing , cup washer, adapter O-ring, vacuum breaker seat, vacuum breaker O-ring, stainless steel spring, retaining clip, EPDM O-ring, PTFE cartridge packing

Standards/Certifications: ANSI/NSF 61-9, ASSE 1019, type A certified, JIS C2600, IAPMO, UPC listed
