GC Valves S211GF02C5GJ2

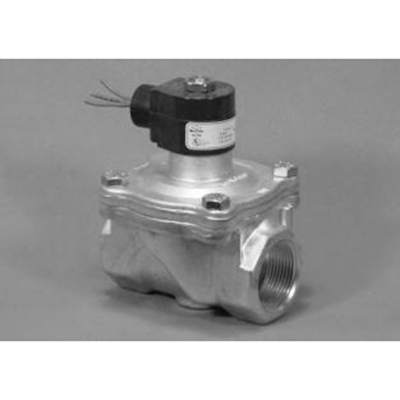

S21 Brass 2-Way Pilot Operated General Purpose Solenoid Valve, 1-1/4 in, NPT, 110 VAC

  • Manufacturers: GC Valves
  • Brand Name: GC Valves
  • PN: S211GF02C5GJ2
  • MPN: S211GF02C5GJ2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Coil Class      :      Class F
Configuration      :      Normally Closed
Connection Size      :      1-1/4 in
Connection Type      :      NPT
Dimension      :      4.35 in L x 3.7 in W
Flow Co-Efficient      :      19 Cv
Frequency Rating      :      50 Hz
Item Name      :      Solenoid Valve
Material      :      Brass
Orifice Size      :      1-1/4 in
Power Rating      :      8 W AC, 9 W DC
Pressure Rating      :      Air/Gas: 200 psi AC, 150 psi DC, Water: 150 psi AC, 150 psi DC
Seal Material      :      EPR
Series      :      S21
Temperature Rating      :      32 - 125 deg F
Type      :      2-Way, Pilot-Operated, General Purpose
Voltage Rating      :      110 VAC
  • Encapsulated water-proof conduit housing
  • 24 in lead length

Standards/Certifications: UL listed, CSA certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25576_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25579_Spec.pdf
